Automatic double head chamfering forming machine with loading and unloading
| Model | SDJ 50~80 |
| Specification | chamfering the pipe ends |
Double-head Synchronous Processing
Synchronous chamfering on both ends, efficiency improved by about 50%-100% compared with single-head machines, and consistent precision on both ends (up to ±0.02mm)
Full-process Automation
Automatic cycle of loading → clamping → chamfering → unloading; configurable with PLC/CNC, compatible with vibrating disk, manipulator and robotic loading & unloading
Wide Adaptability

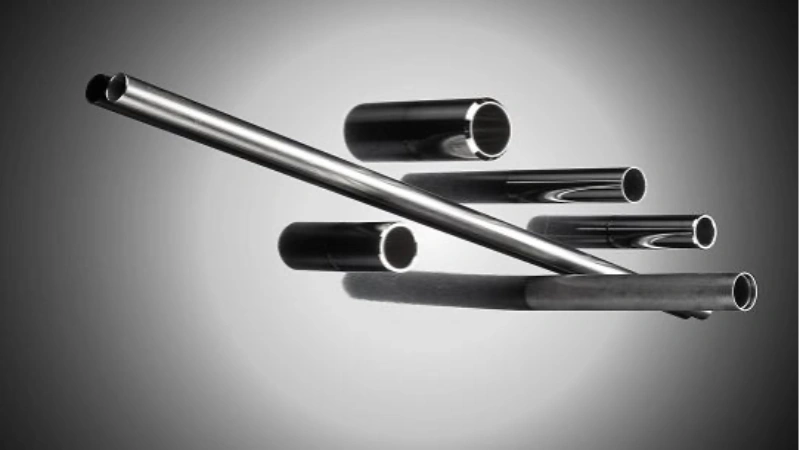

Applicable pipe/bar diameter: approx. 2-150mm, customizable length; suitable for steel/aluminum/copper/plastic pipes, optional chamfer angle: 15°-60°
High Reliability

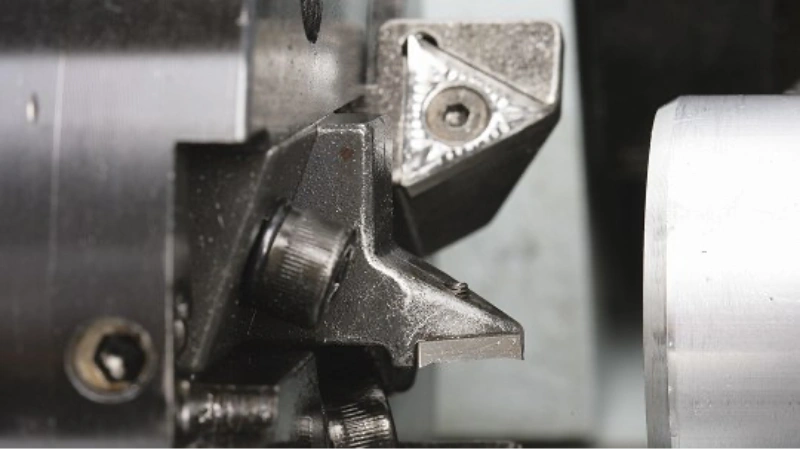

Carbide cutting tools + automatic compensation, enclosed protection, reducing the risk of defective products and industrial injuries
|
English Translation |
|

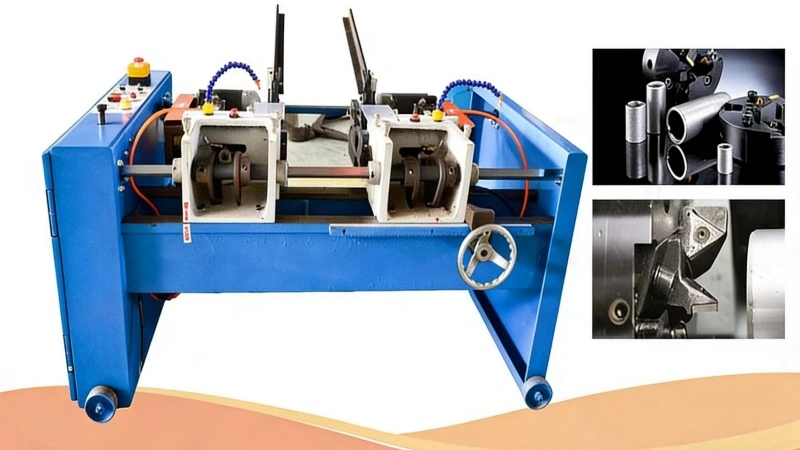

Machine Model: SDJ-80 Double-Head Pneumatic Chamfering Machine |
|
Main Motor Power: 2.2 kW |
|
Voltage: 380V, 50Hz |
|
Motor Speed: 1200–1600 RPM |
|
Applicable Materials: Steel pipe, iron pipe, aluminum pipe, copper pipe, stainless steel, bar stock, PVC pipe |
|
Suitable Pipe Diameter: Φ16mm – Φ80mm (Tool rest customization required for Φ16mm and below) |
|
Working Air Pressure: 0.6–0.8 MPa |
|
Standard Configuration: 1× standard cutter head, 1× fixture set, 1× blade set (3 pairs) |
|
Machine Weight: 750 kg |
|
Machine Dimensions (L×W×H): 800×950×2000 mm |
|
Application Fields |
Applicable Workpieces & Scenarios |
|
General Metal Processing |

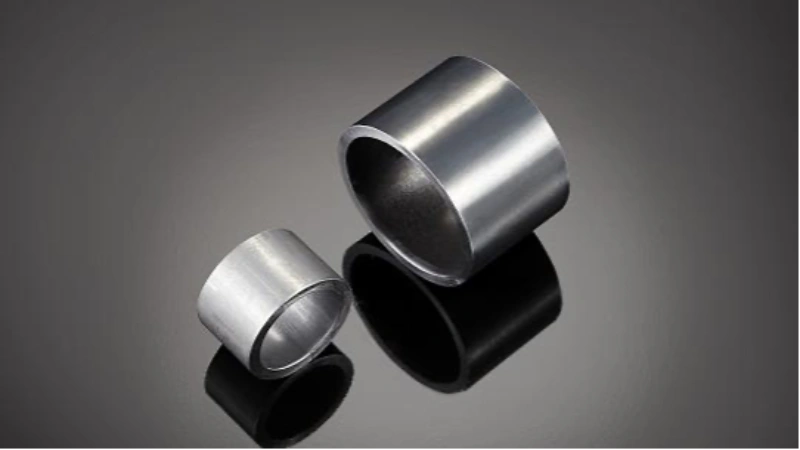

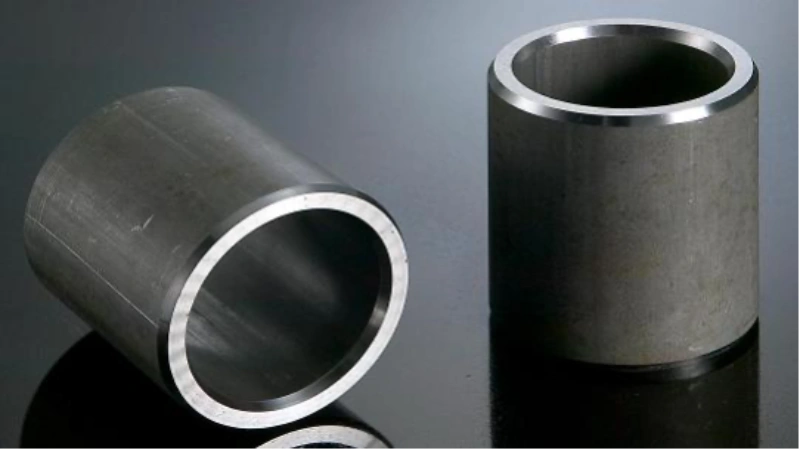

Chamfering/face finishing of inner/outer angles on round pipes/bars, deburring, and precision improvement |
|
Automotive Parts |
End machining of exhaust pipes, fuel pipes, hydraulic tubes, drive shafts, etc. |
|
Hydraulic & Pneumatic Fittings |
Precision chamfering of high-pressure oil pipe joints, cylinder tubes, valve fittings, etc. |
|
Furniture Manufacturing |
End processing of stainless steel/aluminum furniture frames, table/ chair leg pipes, etc. |
|
Construction Machinery |
Machining of hydraulic pipelines and structural pipes for excavators, loaders, etc. |
|
Shipbuilding |
End chamfering of ship pipeline systems (steel pipes, stainless steel pipes) |
|
Plastic Pipe Processing |
Trimming and chamfering of end faces of engineering plastic pipes such as PVC |
|
Custom Processing |
Processing of small-diameter pipes (Φ16mm and below, custom tool rest required) and special material pipes |
