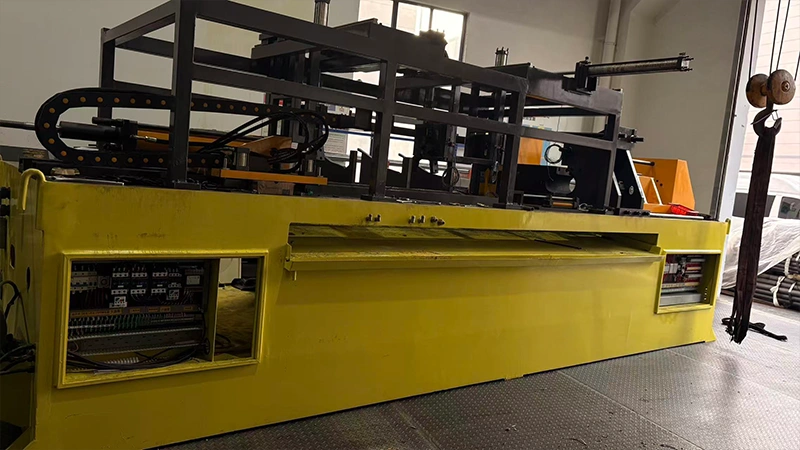

Automatic pipe loading and shrinking machine
| Shelf time: | 2025-10-24 |
| Model: | Customized |
| Specification: |
Automatic pipe loading and shrinking machine line
Automatic pipe loading , pipe feeding ,shrinking machine .
PLC CONTROL, CNC AUTOMATIC .
Working Principle
In usual , the tubes are first placed on the loading rack, The feeding device conveys the tubes to the tube shrinking fixture one by one. A driving mechanism such as an air cylinder pushes the fixture to clamp the tube. Then, a hydraulic system or other power unit drives the tube shrinking die to extrude the end of the tube, reducing its diameter to complete the tube shrinking process. After processing, the fixture releases, and the tube is automatically discharged.
Features
• High automation level: Equipped with an advanced control system, it can realize multiple processes such as automatic feeding, clamping, tube shrinking, punching and loading down . No need to operate by worker frequently , which effectively improves production efficiency and reduces labor intensity.
• High processing precision: With high-precision dies and control system, it can accurately control parameters like the size and position of the shrunk tube, ensuring stable and consistent processing quality.
• Strong adaptability: It can process various metal tubes such as stainless steel, copper, iron and aluminum tubes. By replacing different dies, it can realize tube shrinking processing of multiple shapes and sizes to meet the needs of different users.
• High production efficiency: Some automatic feeding tube shrinking machines can achieve a processing speed of one piece per second, greatly improving production efficiency and being suitable for mass production.
Application Fields
Automatic feeding tube shrinking machines are widely used in industries such as furniture manufacturing, automobile manufacturing, architectural decoration and machinery manufacturing. Examples include the connecting sleeves for outdoor furniture, the tube shrinking processing of automobile exhaust pipes, and the pipe connection of construction scaffolding.
