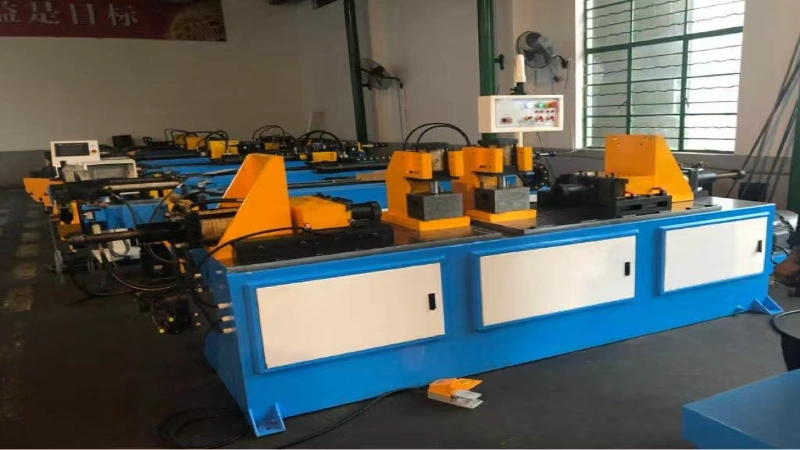

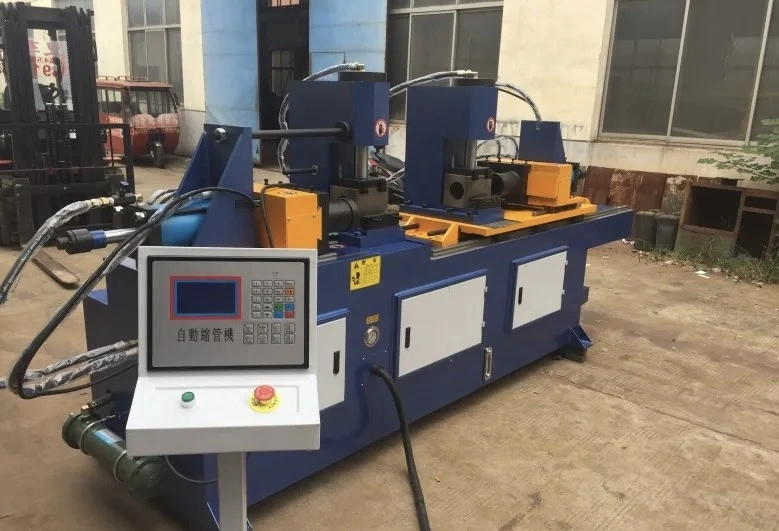

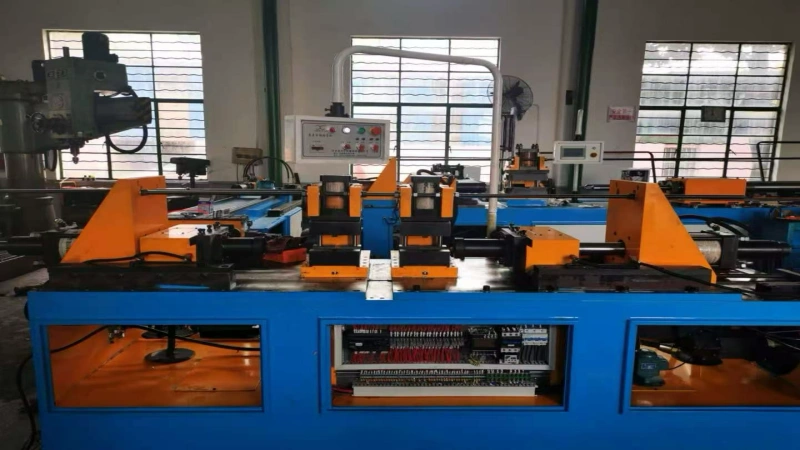

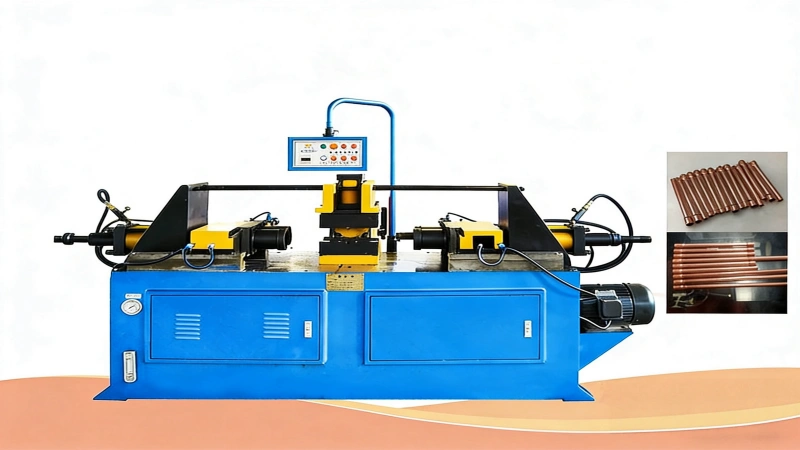

Double head with two tools shrinking metal pipe machine
| Shelftime: | 2026-2-2 |
| Model | DPS |
| Specification | double ending forming machine |

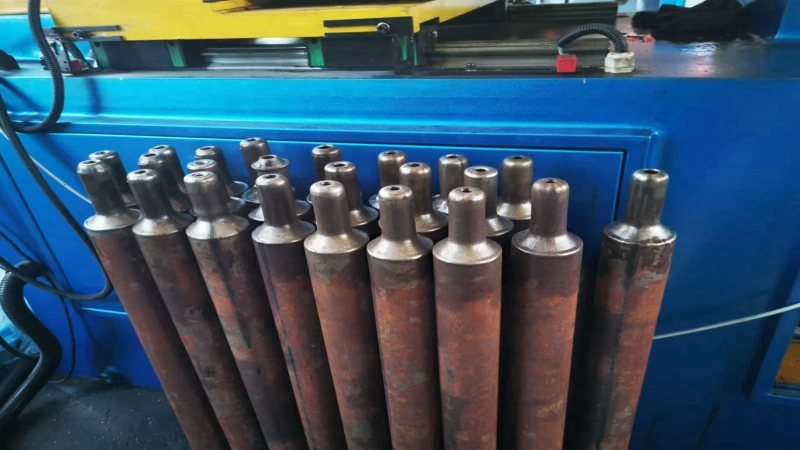

Powered by hydraulic/pneumatic drive, the double-head tube reducing machine enables the dies at both ends to axially extrude the two ends of metal pipes synchronously, causing plastic deformation of the metal at the extruded parts of the pipes to achieve diameter-reducing forming of the pipe ends. It can precisely control the diameter-reducing size, taper and length, and is suitable for the forming requirements of batch pipe processing.
1. Power supply: 380V, 50HZ, three-phase with regulated power supply
2. Tube reducing capacity: For carbon steel pipe fittings Φ80×2 under continuous production; Material standard: GB8162-1999, Material grade: 35# steel
3. Max. tube reducing length: 160mm
4. Bore diameter of main oil cylinder: Φ150mm
5. Single tube reducing cycle: 8~15s
6. Clamping stroke: 85mm
7. Die changing stroke (PS80B): 135mm
8. Motor: Y132S-4, 7.5KW
9. Oil pump: P219PR01DT
10. Oil pump displacement: 19L/min
11. System pressure: 12MPa
12. Oil tank volume: 110L
It is suitable for the diameter-reducing forming processing of both ends of metal pipes, and is widely used in the pipe processing procedures of engineering machinery, auto parts, hydraulic pipe fittings, furniture manufacturing and other industries. It meets the forming requirements of pipe end diameter variation in mass production and is applicable to the processing of various pipes such as carbon steel pipes and alloy pipes.
