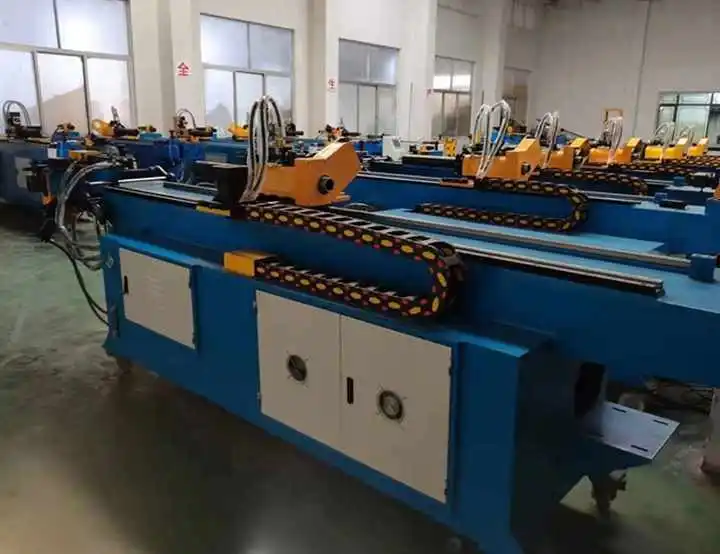

DW50CNC Pipe Bender Machine
| Shelf time: | 2024-10-10 |
| Model: | DW50CNC |
| Specification: | 10mm up to 220mm |
Steel pipe cnc auto bending machine
Product Description:
Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (B) & Rotation (C) in a complete automatic cycle.
Ranging from 10mm up to 220mm OD these machines are suited for use in a wide range of pipe manufacturing sectors and industries. Available in different versions, there's all three axis are automatic in a single stack machine.There's also the option to add push bending function, left and right bending function, more stacks,and so on.
The series comes equipped with easy-to-operate touchscreen controls, or with the latest user-friendly 3D bending software. This stores tooling configuration, allows spring-back compensation, and boasts anti-collision technology, amongst other features.
| No. | The main technical parameters | Parameter Value | Unit | Remarks |
| 1 | Maximum bending capacity | Ф38×2 | mm | |
| 2 | The maximum feed distance | 1800 | mm | |
| 3 | Maximum bending angle | 190° | degree | Bending accuracy: ±0.1° |
| 4 | The maximum bending number | 20 | ||
| 5 | Rotation | 0~±360° | degree | Angle accuracy: ±0.1° |
| 6 | Feeding accuracy | ±0.1 | mm | |
| 7 | Bending program memory capacity | 500 | unit |

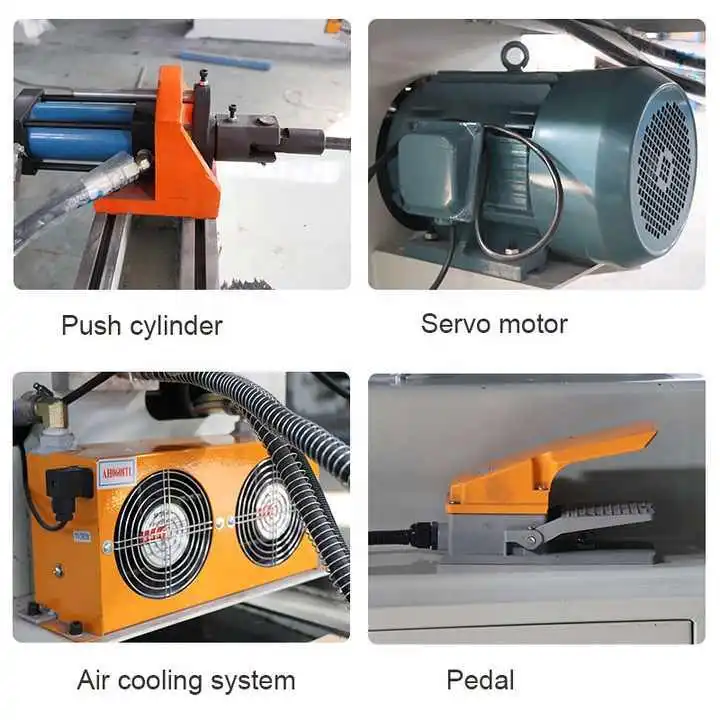

* Interactive PLC touch screen offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.

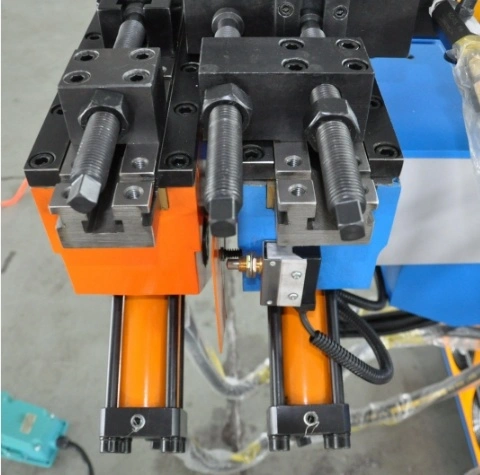

* Fully hydraulic clamping on clamp die and pressure die.
* Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
* Feeding (B-Axis): Controlled by Servomotor.
* Rotating (C-Axis): Controlled by Servomotor.
* Equipped with adjustable speed valve on pressure die ensures the synchronization of bending.
* Air cooling system ensures the equipment long-time work stably under the high temperature.
* CE&ISO 9001:2000.

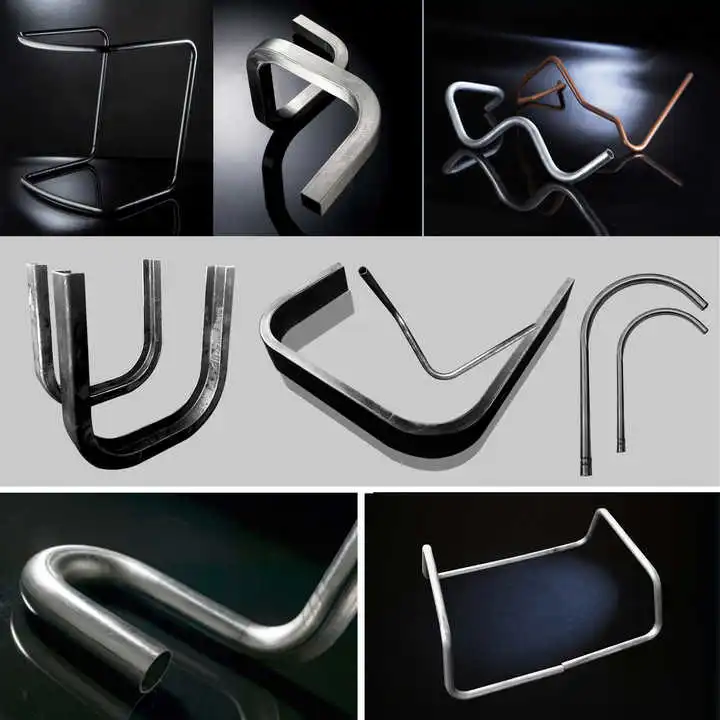

Bending sample show
