Steel pipe cnc auto bending machine

Product Description:

Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (B) & Rotation (C) in a complete automatic cycle.

Ranging from 10mm up to 38mm OD these machines are suited for use in a wide range of pipe manufacturing sectors and industries. Available in different versions, there's all three axis are automatic in a single stack machine.There's also the option to add push bending function, left and right bending function, more stacks,and so on.

The series comes equipped with easy-to-operate touchscreen controls, or with the latest user-friendly 3D bending software. This stores tooling configuration, allows spring-back compensation, and boasts anti-collision technology, amongst other features.

* Interactive PLC touch screen offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.
* Fully hydraulic clamping on clamp die and pressure die.
* Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
* Feeding (B-Axis): Controlled by Servomotor.
* Rotating (C-Axis): Controlled by Servomotor.
* Equipped with adjustable speed valve on pressure die ensures the synchronization of bending.
* Air cooling system ensures the equipment long-time work stably under the high temperature.
* CE&ISO 9001:2000.

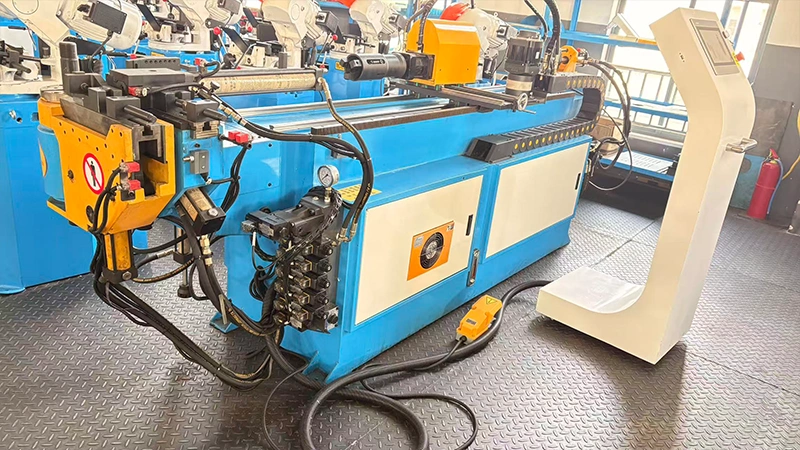

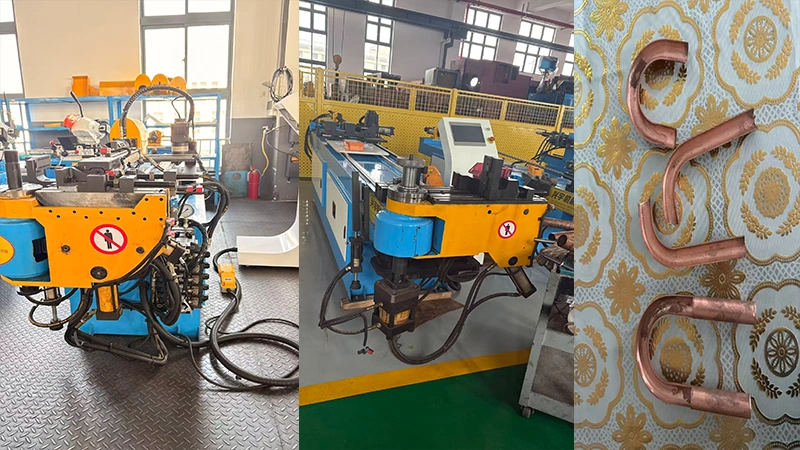

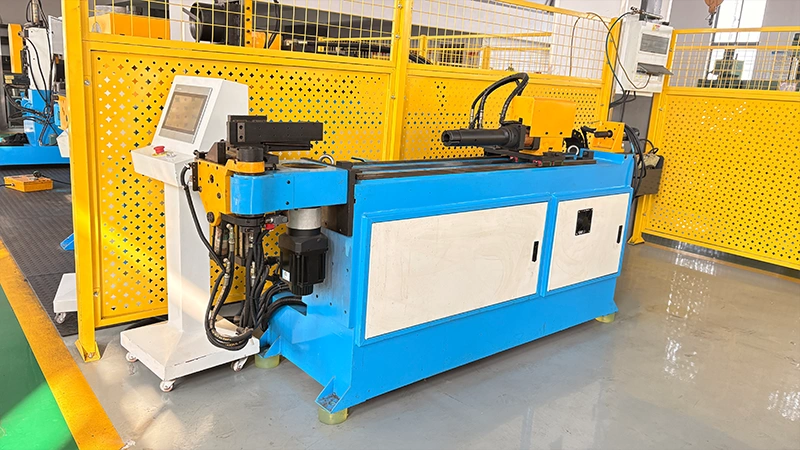

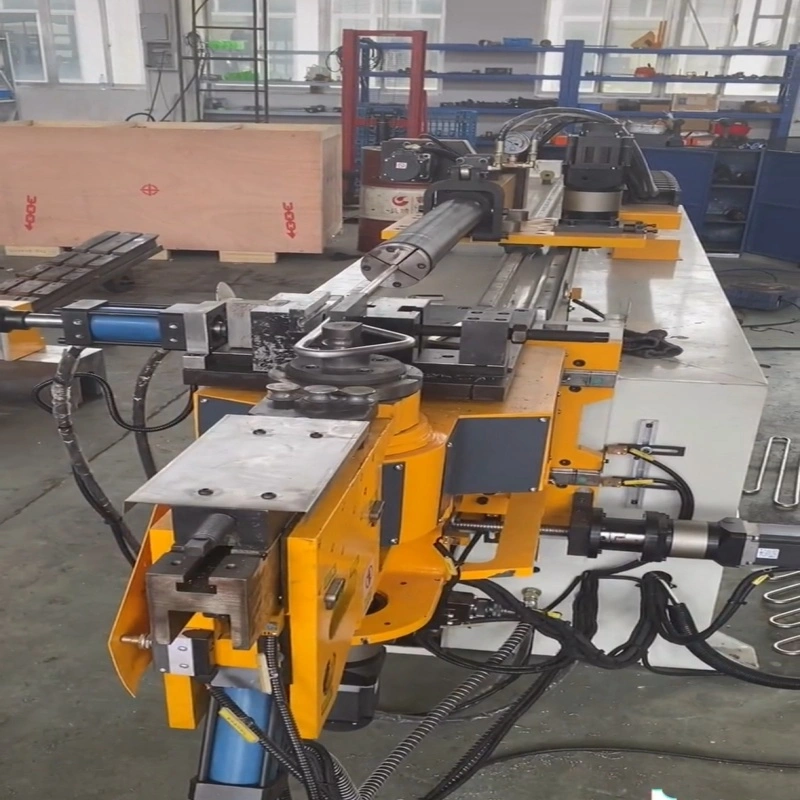

Machine  picture

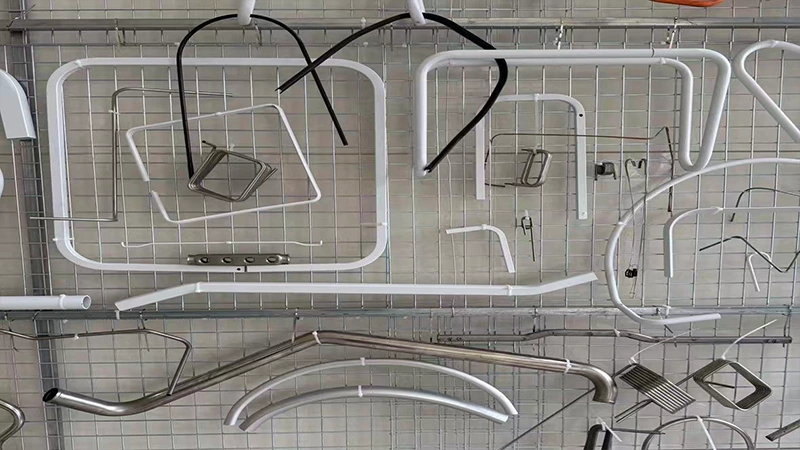

Bending sample show

Pipe bending machines are widely used in such fields as automotive manufacturing (bending of vehicle frames, exhaust pipes and oil pipes), aerospace (processing of aircraft pipeline systems), shipbuilding industry (forming of hull pipelines and structural components), engineering machinery (bending of hydraulic pipelines and supports), furniture manufacturing (processing of iron and stainless steel furniture frames), and HVAC piping (laying of air conditioning and gas pipelines).
