Two layers mold cnc automatic pipe bending machine
| Shelf time: | 2026-1-20 |
| Model | DW-63-2-3CNC pipe bending machine |
| Specification | Round Pipe Φ10-φ63mm,Thickness 2MM |
Core Design and Principle
• Double - layer die structure: Equipped with two independent sets of upper and lower dies, it supports synchronous processing of double pipes or continuous forming of different procedures, reducing die - changing time and improving efficiency.
• Drive and control: Adopting servo motor + hydraulic hybrid drive, combined with CNC system, it realizes multi - axis linkage such as feeding, rotating and bending, with high positioning accuracy and stability.
• Action process: It automatically completes clamping, pipe bending, core pulling, feeding, pipe rotating, demolding, die changing, etc. Some models are equipped with side auxiliary pushing/supporting pipes, suitable for complex pipe fittings.
Performance Characteristics
• Accuracy and efficiency: The bending angle accuracy can reach ±0.1° with precise repeated positioning; synchronous or continuous forming of double pipes greatly improves efficiency compared with single - layer die.
• Strong flexibility: It supports fast die change and is suitable for round pipes, square pipes, etc.; it can store multiple sets of programs and switch to produce different pipe fittings with one key.
• Safety and reliability: Equipped with photoelectric protection, emergency stop button, safety door lock, etc., it complies with industrial safety standards and ensures operational safety.

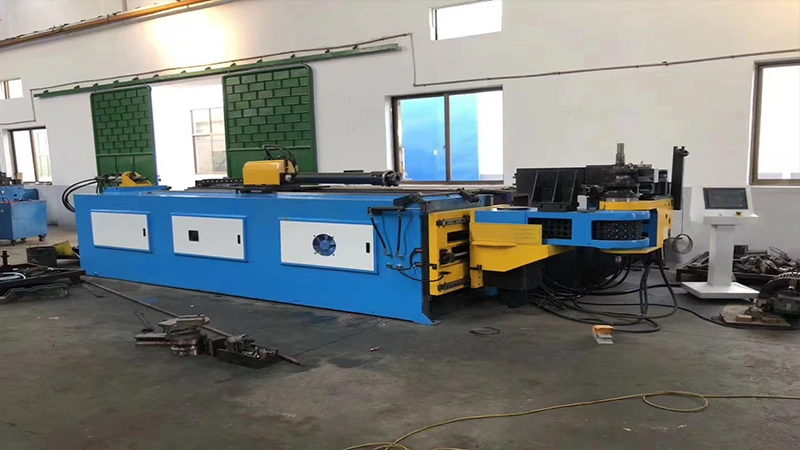

Machine show
Parameters
|
No. |
Main Technical Parameters |
Parameter Value |
Unit
|
Remarks |
|
1 |
Maximum Pipe Bending Capacity |
Ф60×2 |
mm |
|
|
2 |
Maximum Core Penetration Distance |
2500 |
mm |
Customizable per customer requirements |
|
3 |
Die Change Center Distance |
85 |
mm |
|
|
4 |
Double‑Die Radius Difference |
95 |
mm |
|
|
5 |
Maximum Bending Angle |
190° |
° |
Bending accuracy ±0.1° |
|
6 |
Maximum Number of Bends |
20 |
pcs |
|
|
7 |
Rotation Angle |
0～±360° |
° |
Rotation accuracy ±0.1° |
|
8 |
Feeding Accuracy |
±0.1 |
mm |
|
|
9 |
Bending Program Memory Capacity |
500 |
sets |
|
|
10 |
Feeding Servo Motor Power |
1.5 |
kw |
|
|
11 |
Rotation Servo Motor Power |
0.4 |
kw |
|
|
12 |
Machine Dimensions (L×W×H) |
3300×1000×1200 |
mm |
|
|
13 |
Machine Weight |
2500 |
kg |
|
Category |
Name |
Quantity
|
Place of Origin |
|
Electrical Part |
10.4‑inch Color Touch Screen |
1 |
Hitech, Taiwan |
|
DVP‑32EH Program Controller |
1 |
Delta Electronics, Taiwan |
|
|
DVP08HN11R Expansion Module DVP08HN11R |
3 |
Delta Electronics, Taiwan |
|
|
HF‑KE73W1‑S100 400W Servo Motor |
1 |
Mitsubishi, Japan |
|
|
MR‑E‑70A‑KH003 Servo Driver |
1 |
Mitsubishi, Japan |
|
|
HF‑SP302 Servo Driver |
1 |
Mitsubishi, Japan |
|
|
MR‑J3‑150A 1500W Servo Motor |
1 |
Mitsubishi, Japan |
|
|
HF‑SP302 Servo Driver |
1 |
Mitsubishi, Japan |
|
|
Hydraulic Part |
Vane Oil Pump PV2R1‑19 |
1 |
Wuxi Hitech |
|
Relief Valve SBSG‑03‑H |
1 |
Chaoshan Hydraulics, Taiwan |
|
|
Solenoid Valve D5‑02‑3C2‑A15 |
8 |
Chaoshan Hydraulics, Taiwan |
|
|
Solenoid Valve D5‑02‑2B2‑A15 |
1 |
Chaoshan Hydraulics, Taiwan |
|
|
Solenoid Valve D5‑02‑2B2B‑A15 |
2 |
Chaoshan Hydraulics, Taiwan |
|
|
Pilot‑Operated Check Valve MPW‑02 |
4 |
Chaoshan Hydraulics, Taiwan |
|
|
Modular Reducing Valve MRP‑02‑C |
2 |
Chaoshan Hydraulics, Taiwan |
|
|
Modular Throttle Valve MSW‑02X |
2 |
Chaoshan Hydraulics, Taiwan |
|
|
Mechanical Part |
EG080‑20 Servo Reducer |
1 |
Edis Machinery, Taiwan |
|
EG160‑5 Servo Reducer |
1 |
Edis Machinery, Taiwan |
|
|
Linear Guide Rail HGH25CA2R2600ZACⅡ |
2 |
HIWIN, Taiwan |
|
|
Linear Guide Rail HGW20CA2R550ZACⅡ |
2 |
HIWIN, Taiwan |
|
|
Linear Guide Rail HGH60CA2R860ZACⅡ |
2 |
HIWIN, Taiwan |
|
|
Linear Guide Rail HGW60CA2R1040ZACⅡ |
2 |
HIWIN, Taiwan |
More pipe processing machines
More Finished Tube samples show
Qualification Certificates
Application Scenarios
It is widely used in automotive manufacturing (exhaust systems, pipelines), furniture (seats, bed frames), fitness equipment, hardware, engineering machinery and other fields, suitable for mass and high - precision pipe fitting processing needs.
Key Selection Points
• Pipe diameter range: Select according to the diameter of the processed pipe; common models include 38mm, 50mm, 65mm, etc.
• Axis configuration: 3 - axis/4 - axis/5 - axis; the more axes, the more suitable it is for complex spatial bending.
• Automation level: You can choose fully automatic (automatic feeding, pipe bending, cutting, unloading) or semi - automatic according to needs.
