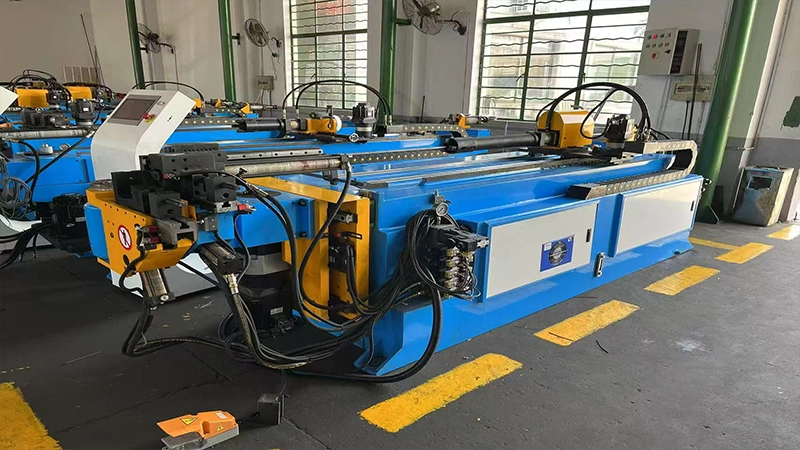

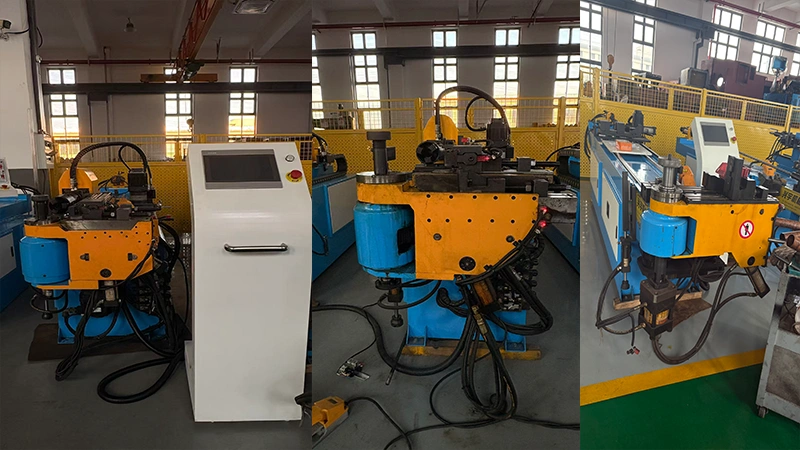

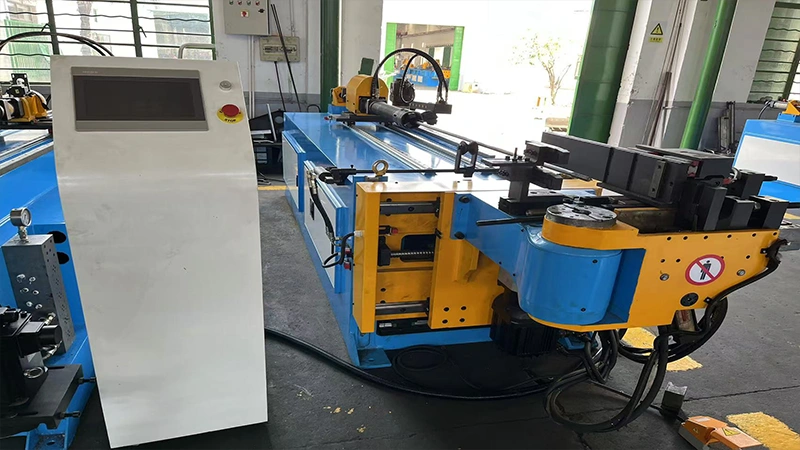

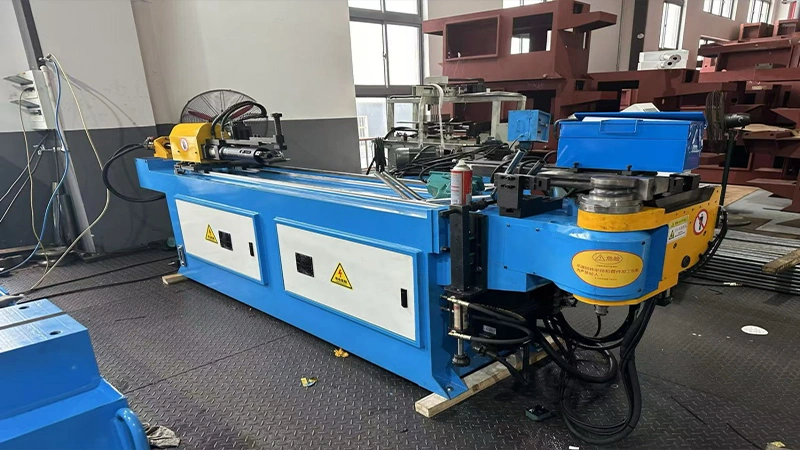

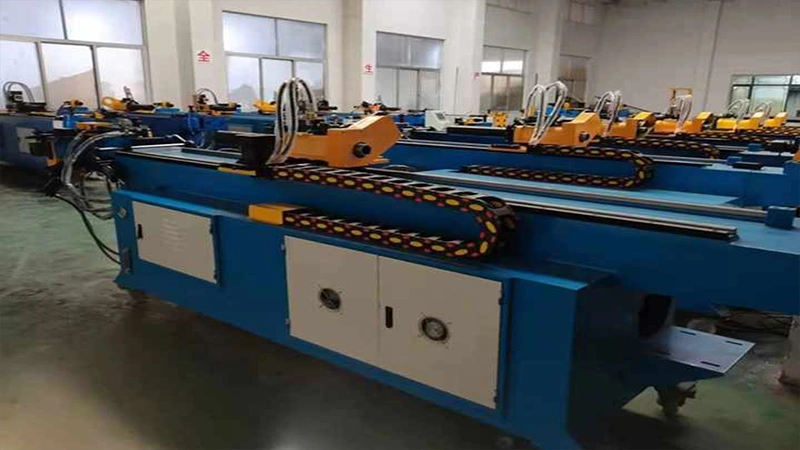

Hydraulic automatic single head metal pipe /tube bending machine cnc
| Shelf time: | 2025-1-14 |
| Model: | DW50-1-3CNC |
| Specification: | METAL DIAMETER 50MM THICKNESS 2MM |
Hydraulic automatic single head metal pipe /tube bending machine cnc
1：servo feeding and angle rotation
2：Change the mold by servo
Description:
1.Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.

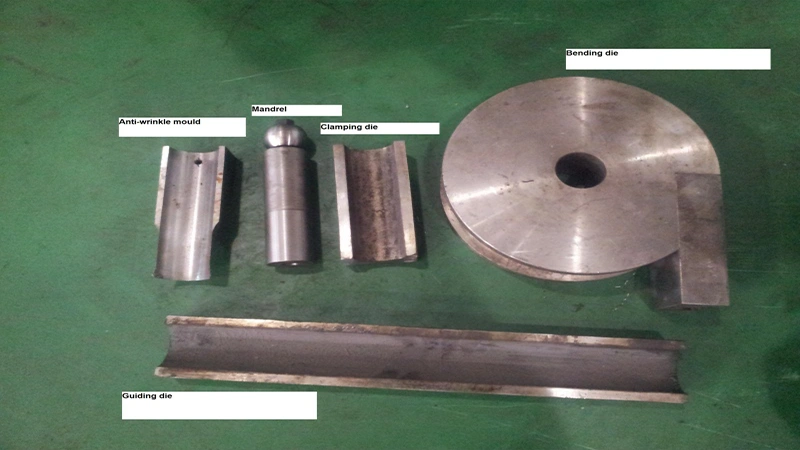

7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production
Technical parameters
|
Specification/Model |
DW50CNC |
|
Max bending diameter of tube |
50.8mm |
|
Max bending wall thickness of tube |
2.0mm |
|
Max bending radius |
250mm |
|
Min bending radius |
50.8mm |
|
Max bending angle |
190° |
|
Max feeding length |
2400mm |
|
feeding method |
direct feeding / clamping feeding |
|
Bending speed |
Max 85°/s |
|
Rotary speed |
Max 200°/s |
|
Feeding speed |
Max 1000mm/s |
|
Bending accuracy |
±0.1° |
|
Rotary accuracy |
±0.1° |
|
Feeding accuracy |
±0.1mm |
Machinery main components and major components
|
Classification |
Name |
Numbers |
Place of origin |
|
Electric parts |
10.4 inch color Touch screen |
1 |
Taiwan |
|
DVP-32EH programmable controller (PLC)
|
1 |
Taiwan |
|
|
DVP08HN11R The extension module |
3 |
Taiwan |
|
|
ASMT04L 400W servo motor |
1 |
Japan |
|
|
ASD-A04 servo drivers |
1 |
Japan |
|
|
ASMT15M 1500w servo motor |
1 |
Japan |
|
|
ASD-A15 Servo drivers |
1 |
Japan |
|
|
Hydraulic pressure parts
|
Vane pumpP214 |
1 |
China |
|
Relief valve
|
1 |
Taiwan |
|
|
Solenoid valve D5-02-3C2-A15 |
8 |
Taiwan |
|
|
Solenoid valve D5-02-2B2-A15 |
1 |
Taiwan |
|
|
Solenoid valve D5-02-2B2B-A15 |
2 |
Taiwan |
|
|
Check valve MPW-02 |
4 |
Taiwan |
|
|
Modular valve MRP-02-C |
2 |
Taiwan |
|
|
Stacking throttle MSW-02X |
2 |
Taiwan |
|
|
Machine parts |
EG060 servo gear units |
1 |
Taiwan |
|
EG120 servo gear units |
1 |
Taiwan |
|
|
EG180-35 servo gear units |
1 |
|
|
|
Linear guide rail HGW20CA2R550ZACⅡ |
2 |
Taiwan |
|
|
Linear guide rail HGH25CA2R3600ZACⅡ |
2 |
Taiwan |
|
|
Linear guide rail HGH45CA2R660ZACⅡ |
2 |
Taiwan |
|
|
Linear guide rail HGW45CA2R840ZACⅡ |
2 |
Taiwan |

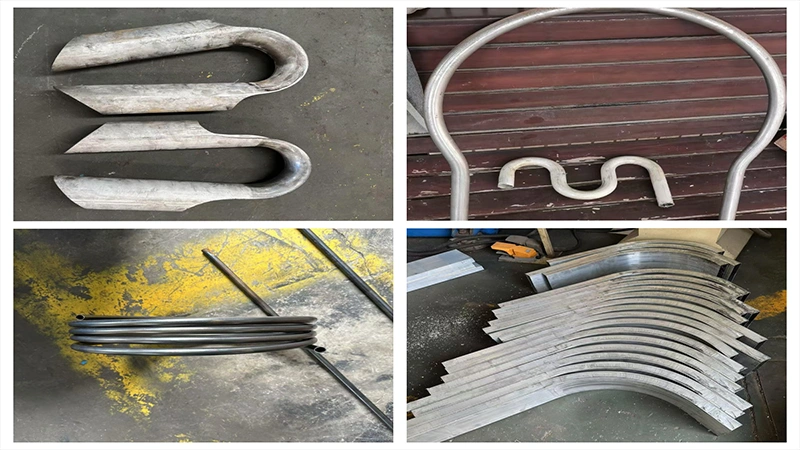

Pipe bending machines are widely used in such fields as automotive manufacturing (bending of vehicle frames, exhaust pipes and oil pipes), aerospace (processing of aircraft pipeline systems), shipbuilding industry (forming of hull pipelines and structural components), engineering machinery (bending of hydraulic pipelines and supports), furniture manufacturing (processing of iron and stainless steel furniture frames), and HVAC piping (laying of air conditioning and gas pipelines).
