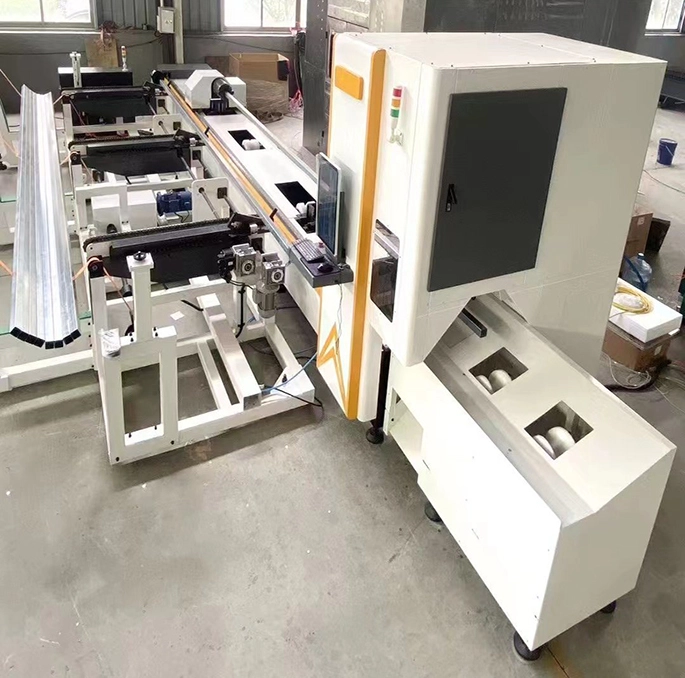

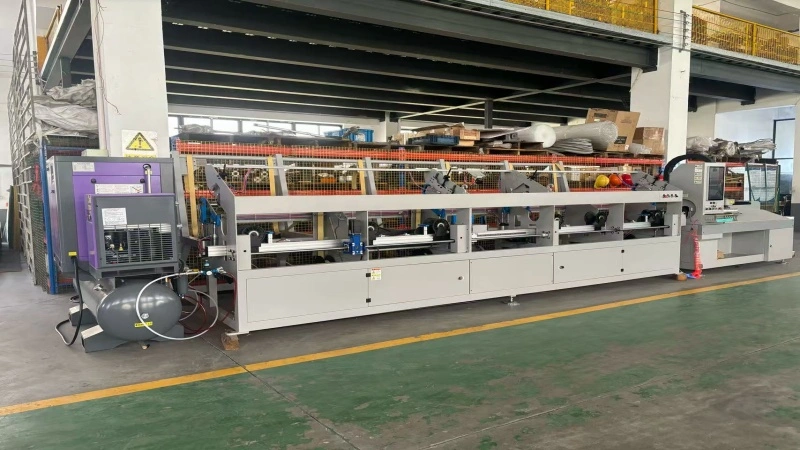

Model: BH-24560
Specification: Round Pipe Φ20mm-φ245mm,Square tube side long≤ 245mm,L ≤ 6500mm

24560  1500W  fiber pipe cutter
Technical Agreement

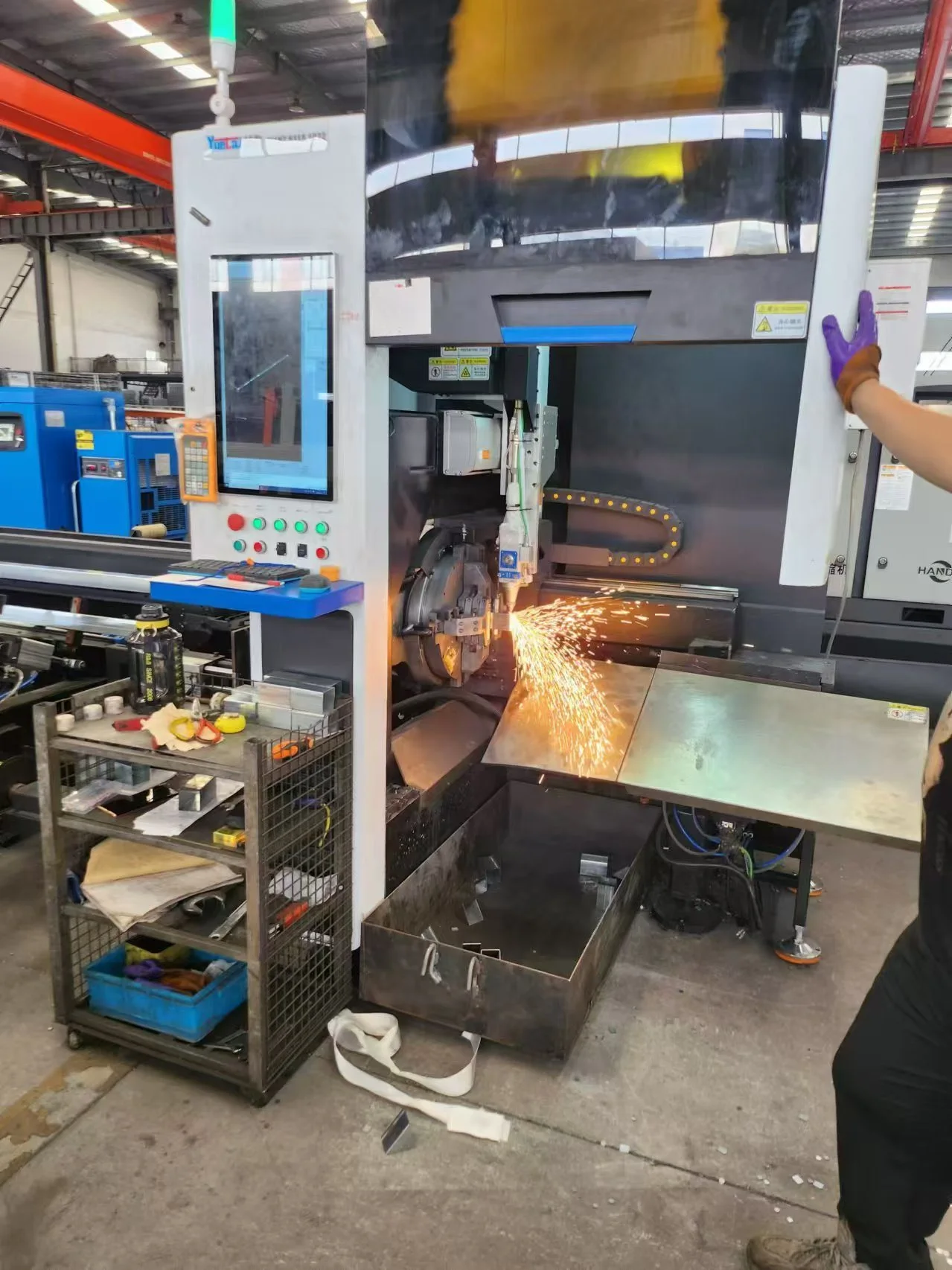

1.Overview

Welcome to use the 2460 series laser pipe cutting machine produced by our company.
Laser cutting is the most widely used processing method in material laser processing. The 2460series laser pipe cutting machine produced by our company adopts high power fiber lasers, equipped with precision linear guides and high-precision rack and pinion transmission mechanisms. The CNC laser cutting machine is a collection of precision CNC laser cutting machines. High-tech products such as cutting,precision machinery, numerical control technology, etc.,mainly used for round tubes, square tubes, rectangular tubes,Corner steel ,groove steelof ordinary carbon steel, stainless steel and other materials; with high precision and high efficiency, high cost performance and other characteristics.

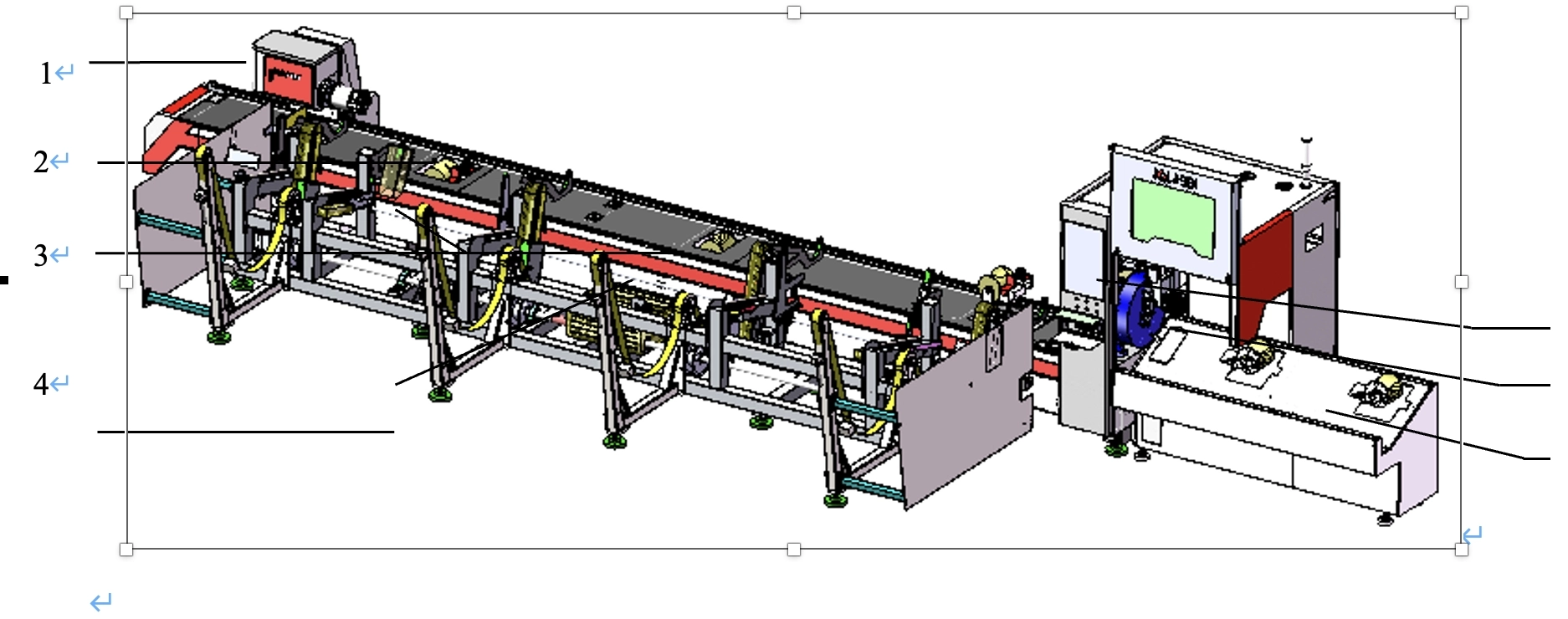

cfee1f06a8845b95c4b94ab1472b3697_副本



  number   name  parameter   unit
1 Pipe processing dimensions Round Pipe Φ20mm-φ245mm,Square tube side long≤ 245mm,L ≤ 6500mm; mm
2 X-axis travel 200 mm
3 Y-axis travel 6500 mm
4 Z-axis travel 120 mm
5 X, Y-axis positioning accuracy ±0.05/1000mm mm
6 The X, Y-axis repeated positioning accuracy ±0.03/1000mm mm
7 accelerated speed;accelerated velocity;acceleration  1G m/s²
8 The X, Y-axis has a maximum operating speed 70 m/min
9 Maximum dial speed 40 r/min
10 Taiiling length ≥ 30mm (depending on workpiece length and specific process condition)

 mm
11 Main machine appearance (length, width and height) About 8900 × 1350 × 1750 mm
12  laser power  1500W w
13 control system Weihong
14 Complete power 20 Kw
15 Power supply requirements 380V/50Hz V

Laser Steel Pipe Cutting Machine

Main configuration list of the products



 order numbe name  brand  Country  quantity  remarks
1 servo motor  HCFA  domestic 5 sets
2  linear guide rail SMAGIC Janpan  a surname
3 Gear rack lean  Germany  a surname
4 reduction box  EOE  domestic Three sets
5 Front and rear pneumatic dial EOE  China One set
6  pneumatic component Yadker TaiWan  a surname
7 laser MAX China One set
8  laser head RAYTOOL China One set
9 cooling-water machine Han Li China One set
11 Low-voltage electrical components ZhengTai China  a surname
13 lube oil system domestic China One set
14  navar Weihong China One set

1,Product Installation and Use Conditions:



 order number  project ask
1  source Three-phase Five-line 380V ± 10% 50Hz
2  compressed air Dry the filtered air by 1Mpa-1.3Mpa
3 oxygen 99.99% Pure oxygen, with a pressure of 0.4Mpa-0.8Mpa
4 nitrogen  99.99% Pure nitrogen, with a pressure of 1.2Mpa-2.5Mpa
5 work environment Air circulation, no dust, and no oil fog
6  humiture  Ambient temperature 0~40 ºC; ambient humidity ≤ 80%
8 Ground-level requirements Continuous flat dry concrete ground, ≥ 20cm. thick flatness 8mm/ full length

Power cable is single 16mm² and above, empty open 125A and above site ready for separate ground protection, grounding pile into at least 1.5m deep underground, and fill salt water around for grounding protection, grounding resistance is ≤ 4 Ω; it is forbidden to common ground line with other equipment.
Oxygen and nitrogen are equipped with gas pressure relief valve, oxygen gauge and nitrogen gauge. If liquid oxygen or liquid nitrogen is used, liquid oxygen with 50 cubic per hour gasifier, liquid nitrogen and 120 cubic / per hour gasifier, high quality gas pressure relief valve to ensure pressure stability and no fluctuation. If air cutting is used, air pressure shall reach 1.3Mpa and no water and oil to meet the production. If the pipeline is caused by unclean air filtration, the lens damage is not within the warranty.

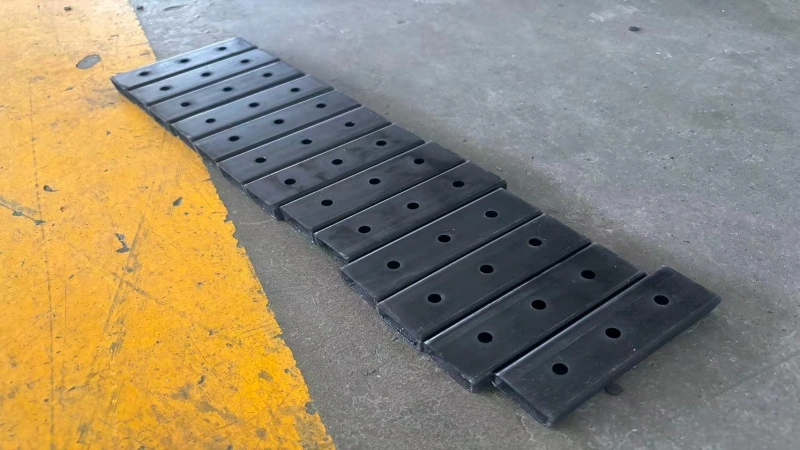

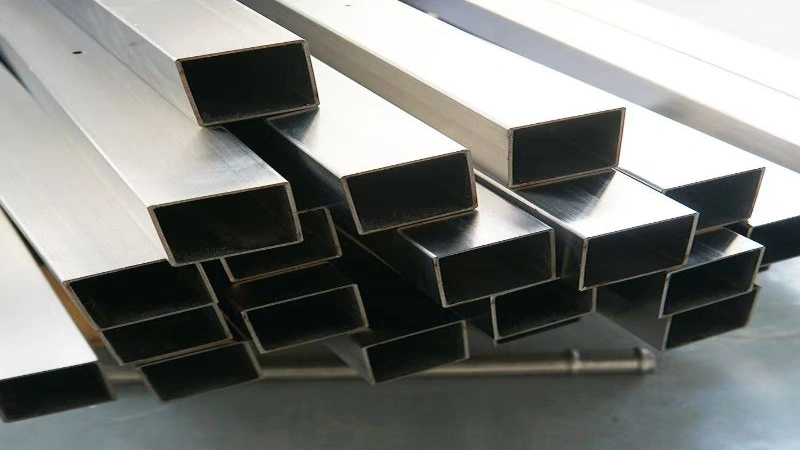

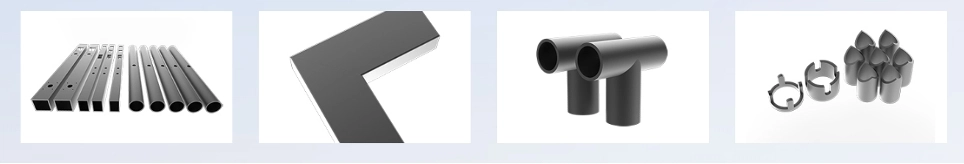

Cut the sample

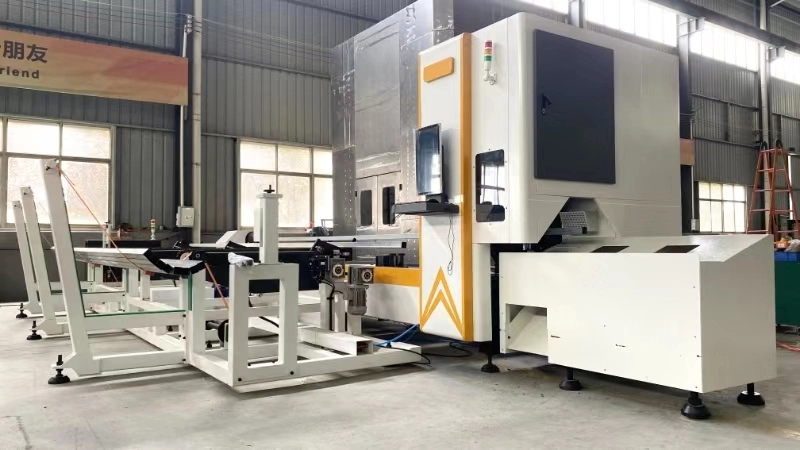

Laser Steel Pipe Cutting Machine     71850f2d1ddb6a413be2639d5ec05fb6_副本 ca7f7d8934d7dc9845983c5f7c23a536_副本

Application Fields of Tube Laser Cutting Machines

Tube laser cutting machines are widely adopted across diverse sectors, leveraging their advantages of high precision, non-contact processing, and efficient cutting, hole-drilling and beveling. Their core application fields are as follows:

1. Machinery Manufacturing & Tube Processing: Cutting round tubes, square tubes, rectangular tubes, elliptical tubes, etc., for the production of steel structures, scaffolding, storage racks, fitness equipment, pipe bending accessories, and hardware tube parts.

2. Automotive & Rail Transit: Processing automotive chassis tubes, exhaust pipes, vehicle frames, seat frames, tube components for high-speed trains/subways, and air conditioning pipelines, catering to mass customized production needs.

3. Petrochemical & Pipeline Engineering: Cutting steel pipes, alloy pipes, and anti-corrosion pipes, applied in oil and gas transmission pipelines, pressure vessel pipe fittings, pipeline beveling, and pipe rack support tube processing.

4. Construction & Steel Structure: Processing curtain wall support tubes, steel structure beam and column tubes, truss tubes, and railing handrail tubes, meeting the on-site construction requirements for irregular shapes, multi-batch production and high precision.

5. Aerospace & Shipbuilding: Cutting special tubes such as titanium alloy, aluminum alloy and stainless steel tubes, used in aircraft pipelines, ship pipelines, engine room structural components, and shipborne equipment tube parts.

6. Fitness Equipment & Furniture: Processing frames of bicycles/electric vehicles, treadmill tubes, outdoor leisure furniture (tables, chairs, tent frames), and door/window guardrail tubes, suitable for personalized shape cutting.

Packaging & Shipping

Laser Steel Pipe Cutting Machine

Warehouse

Laser Steel Pipe Cutting Machine
