Metal pipe /tube ends chamfering forming machine
| Shelf time: | 2026-1-28 |
| Model | DJ38~180,SDJ50~80 |
| Specification | pipe diameter 10~180mm thickness 2~8mm |

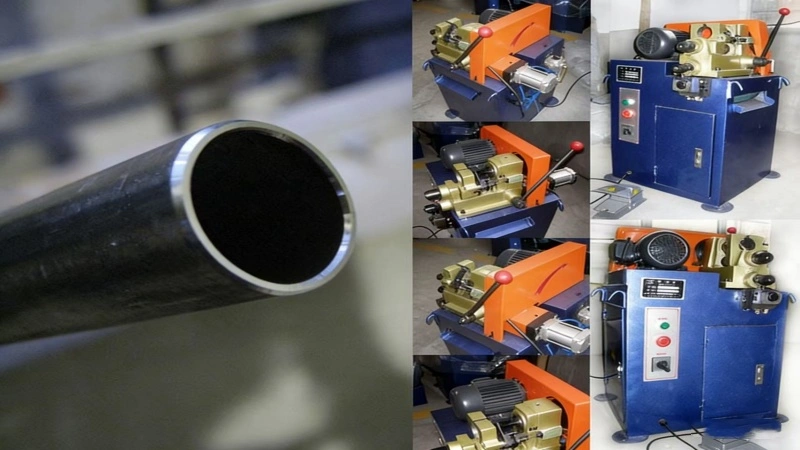

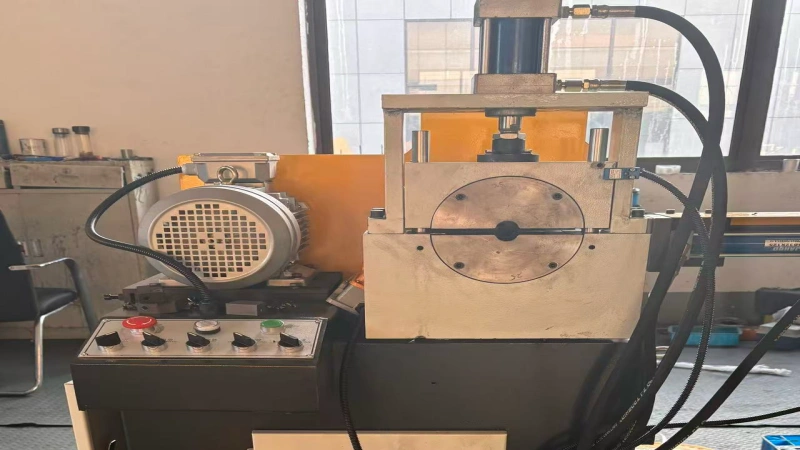

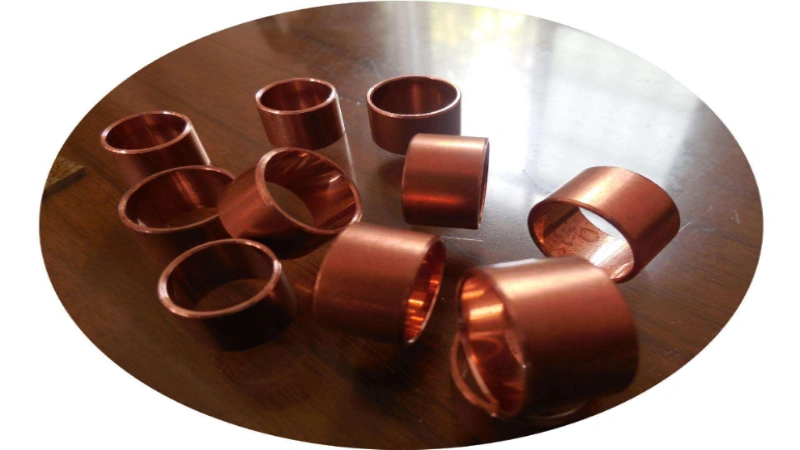

This machine can complete chamfering and face finishing of both inner and outer angles on the end faces of round pipes and bars in one pass, ensuring high speed and precision.
To maintain the accurate and consistent centerline alignment between the workpiece and the cutter head, the clamping die and cutter head are precision-engineered to achieve uniform machining of the workpiece in a single operation.
The cutter head features a specialized design with standardized blades, enabling quick and easy tool adjustment.
With manual feeding, automatic clamping, and automatic tool advance/retreat, the machine delivers high processing speed and increased output.
The semi-automatic mechanical model offers two-stage speed control: the first stage is a rapid feed to save cycle time, while the second stage allows adjustable cutting/chamfering speed to achieve a smooth finished surface.
When switching to workpieces of different dimensions, only simple adjustments to the cutter head and replacement of the clamping die are required.
|
Item |
Specification |
|
Main Motor |
4kw |
|
Compressed Air |
0.6-0.9Mpa, 120ml/min |
|
Applicable Range of Standard Cutter Head |
Φ19-Φ160 |
|
Applicable Range of Mini Cutter Head |
Φ9-Φ19 (Special Order) |
|
Pipe Diameter Processing Capacity |
Φ19-Φ160 (Φ16mm and below, Special Order) |
|
External Angle Processing Capacity of Round Bar |
Φ19-Φ160mm |
|

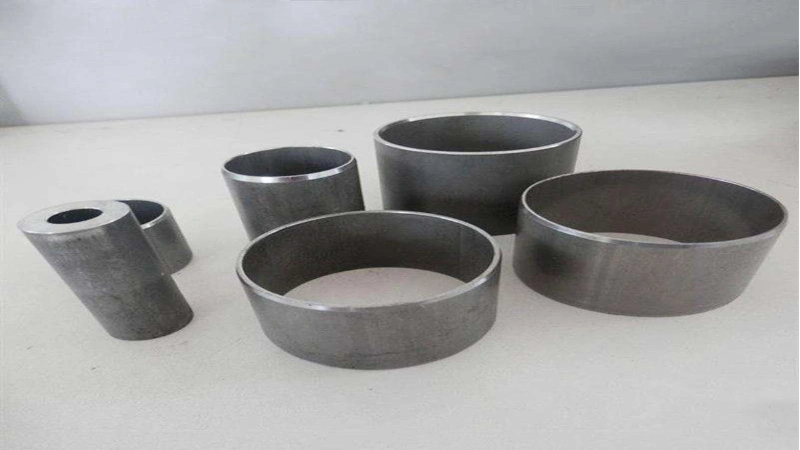

Application Fields |
Applicable Workpieces & Scenarios |
|
General Metal Processing |
Chamfering/face finishing of inner/outer angles on round pipes/bars, deburring, and precision improvement |
|
Automotive Parts |
End machining of exhaust pipes, fuel pipes, hydraulic tubes, drive shafts, etc. |
|
Hydraulic & Pneumatic Fittings |
Precision chamfering of high-pressure oil pipe joints, cylinder tubes, valve fittings, etc. |
|
Furniture Manufacturing |
End processing of stainless steel/aluminum furniture frames, table/ chair leg pipes, etc. |
|
Construction Machinery |
Machining of hydraulic pipelines and structural pipes for excavators, loaders, etc. |
|
Shipbuilding |
End chamfering of ship pipeline systems (steel pipes, stainless steel pipes) |
|
Plastic Pipe Processing |
Trimming and chamfering of end faces of engineering plastic pipes such as PVC |
|
Custom Processing |
Processing of small-diameter pipes (Φ16mm and below, custom tool rest required) and special material pipes |
