The CNC automatic fully electric pipe bending machine
| Shelf time: | 2026-2-5 |
| Model | electric pipe bender |
| specification | speed fast, high- efficiency equipment |
This Electric Pipe Bending Machine is a professional metal processing equipment driven by high-efficiency electric motor, featuring stable operation, low noise and easy operation. Equipped with standard clamping die, bending die and anti-wrinkle die, it ensures high precision bending angle and excellent repeat positioning accuracy, effectively avoiding pipe wrinkling and deformation during processing.

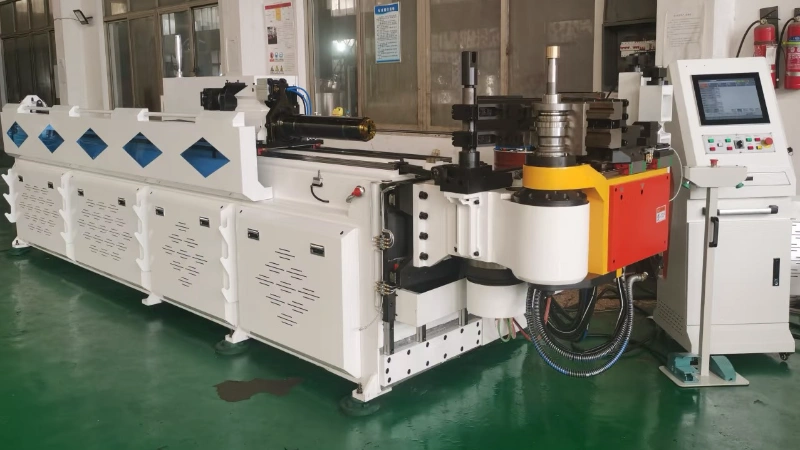

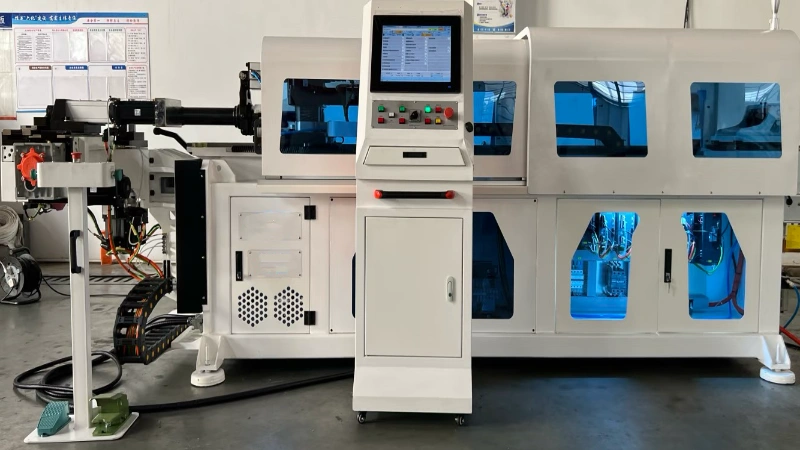

Machine show
|
Item
|
Professional Technical Parameters (Export Standard)
|
|
Machine Model
|
CNC Automatic Fully Electric Pipe Bending Machine (25–168mm)
|
|
Drive Mode
|
Full servo electric drive, 100% hydraulic-free design, clean and environmentally friendly operation
|
|
Applicable Pipe Outer Diameter
|
Φ25mm – Φ168mm (full range customizable)
|
|
Applicable Pipe Materials
|
Carbon steel, stainless steel, aluminum alloy, copper tube and other metal pipes
|
|
Applicable Wall Thickness
|
1.0mm – 14.0mm (adjustable according to pipe diameter and material properties)
|
|
Max. Bending Angle
|
0° – 190° (supports arbitrary angle precise bending)
|
|
Processing Precision
|
Angle accuracy: ±0.1°; Feeding accuracy: ±0.1mm; Rotation accuracy: ±0.1°
|
|
CNC Servo Axis Configuration
|
3–10 independent servo axes, fully programmable and customizable
|
|
Control System
|
Industrial dedicated CNC system + 15-inch multi-language touch screen, supports offline programming and one-click parameter recall
|
|
Springback Compensation
|
Automatic intelligent springback compensation, adaptive to different pipe materials and bending radii
|
|
Max. Feeding Length
|
6000mm (extended length customized service available)
|
|
Bending Radius
|
Customized according to customer’s pipe processing requirements
|
|
Working Noise Level
|
≤72dB, low-noise and stable operation
|
|
Power Specification
|
380V / 50Hz, 3-phase industrial power supply (customizable for global voltage standards)
|
|
Core Advantages
|
Full electric servo control, zero oil leakage, high repetitive precision, stable long-term operation, energy-saving and low maintenance cost, meets industrial high-standard production demands
|
|
Applicable Industries
|
Architectural piping, shipbuilding industry, boiler supporting equipment, automotive parts, fitness equipment, metal furniture, agricultural machinery, engineering tubular components
|
|
Quality Certification
|
Compliant with CE / ISO international quality standards, suitable for global export trade
|
Products show
More pipe processing machines

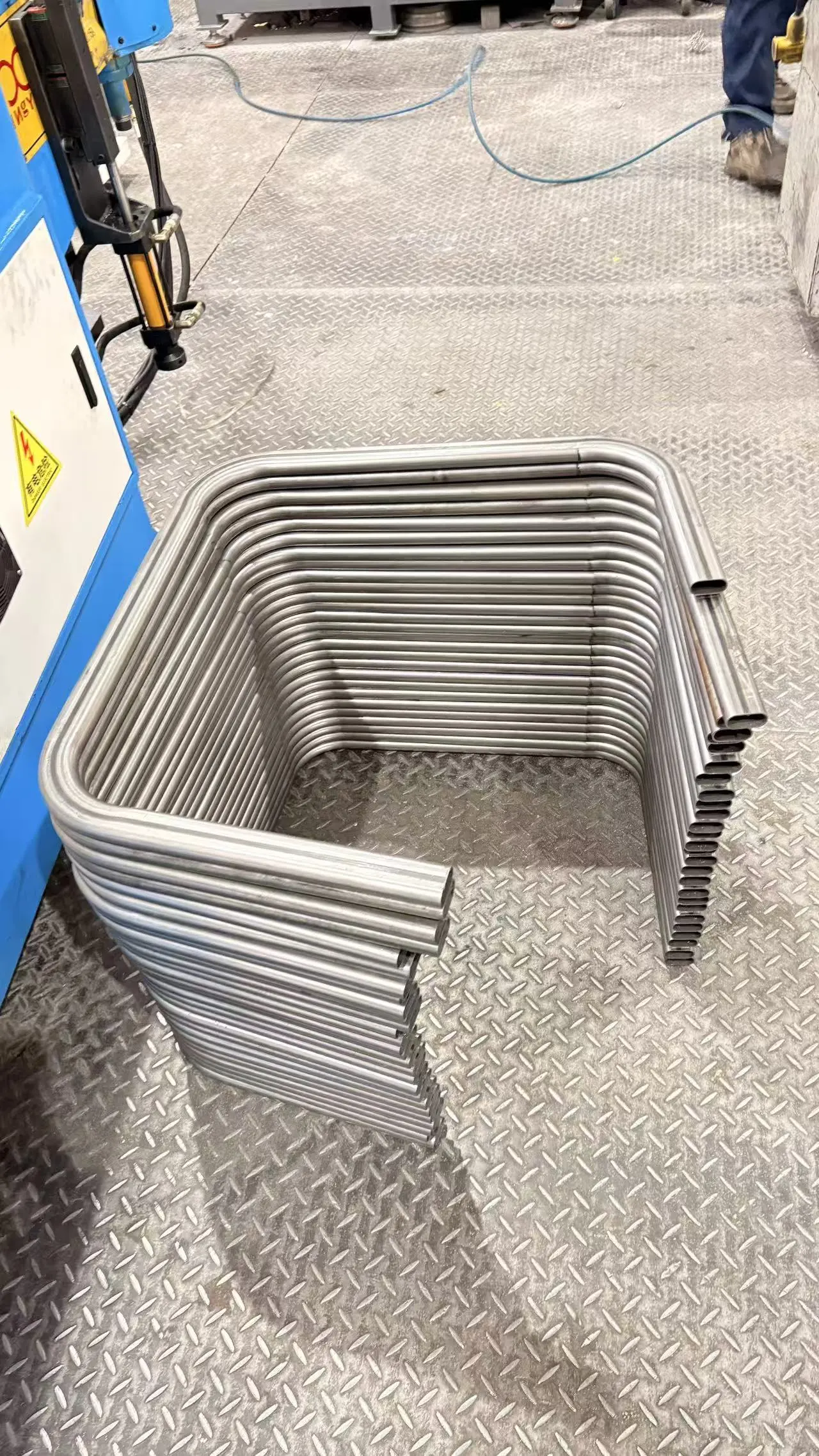

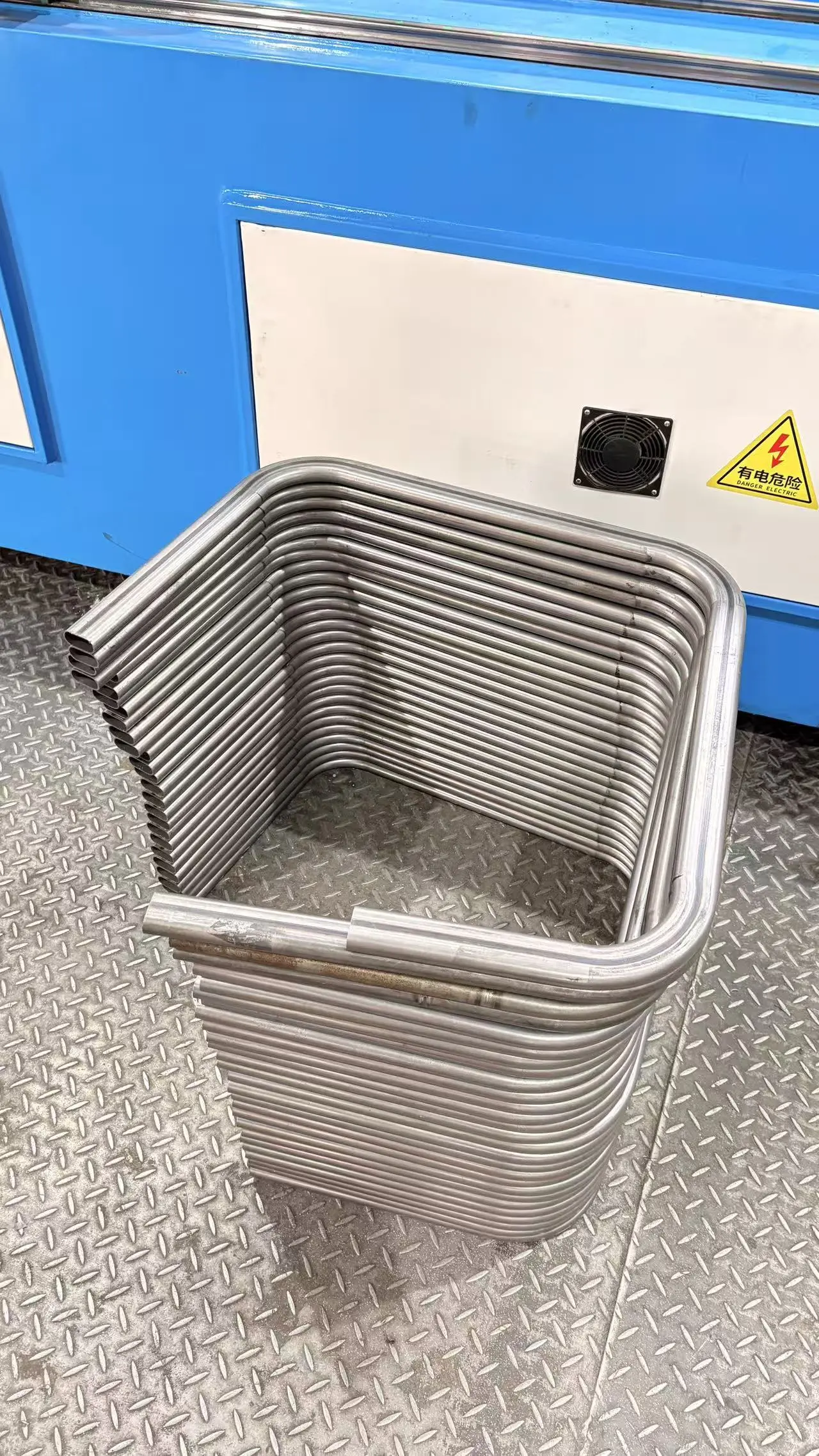

More Finished Tube samples show
Qualification Certificates
The machine is widely applicable to bending various metal pipes including steel, stainless steel, copper and aluminum pipes, and is an ideal choice for metal fabrication, plumbing, HVAC, automotive and other industries with pipe processing needs.
