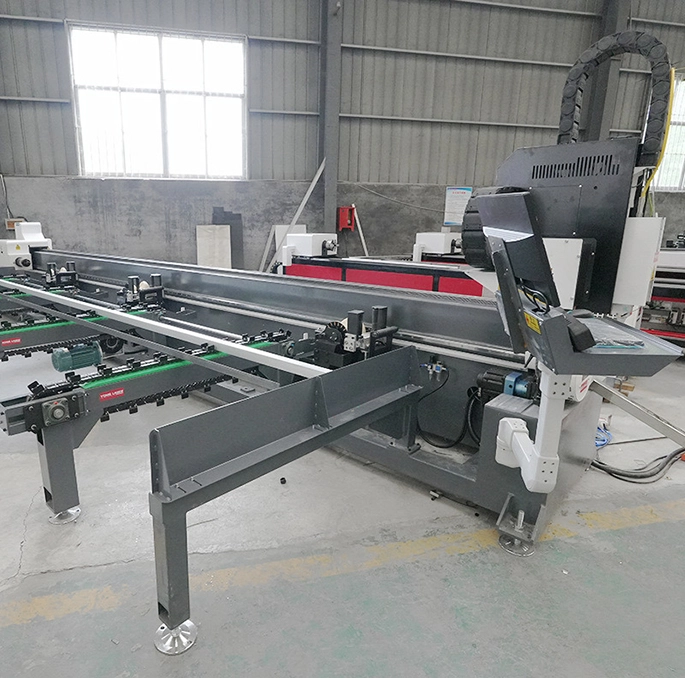

Tube Automatic Pipe Cutting Machine
| Shelf time: | 2024-10-10 |
| Model: | MC450CNC |
| Specification: | 300/315/350/400/450mm |
1. Imported hydraulic system, cutting powerful and the saw blade durable.
2. Linear Guide Raids with lube and vertical slide-way cutting make the cutting steady and accurate.
3. Separated control of cutting and clamping, special-designed clamping method make the clamping
deformation very little, especially suitable for thin pipes and stainless steel pipes.
4. Robust design ensures low vibration, low noise and long-time working.
5. Automatic water cooling system makes the cutting surface smooth and of little flash and strain, also makes the saw blade long-time use.
6. The cutting scraps are treated together and the maintance is easy.
7. Easy to operate. Extremely powerful functions makes it ideal for small lot flexible cutting requirements.
8.Human/machine interface control provides user friendly operations.
9. Touch sensing screen. Numerically controlled, provides high cutting accuracy.
10.Using for automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on
|
Main specification |
MC450CNC |
|
|
Sawing Range |
Round pipe |
Φ150 mm |
|
Square pipe |
120×120mm |
|
|
Rectangle pipe |
160×70mm |
|
|
Solid round pipe |
50mm |
|
|
Solid square pipe |
50x50mm |
|
|
Available Saw Blade Size |
300/315/350/400/450mm |
|
|
Hydraulic pump motor |
4.0KW |
|
|
Oil pressure(hydraulic) |
4MPa |
|
|
Feeding servo motor power |
1.0kw |
|
|
Feeding length |
0-1000mm (Can be customized) |
|
|
Machine weight |
1600KG |
|
|
Size |
2200×1400×2200mm |
|
Metal circular sawing machine
Full automatic pipe cutting machine.
Efficient features .
1 The thin pipes will not be clamp flat.
2.Suit for the thin pipes,furniture pipes and sporting pipes.high efficiency
Common features .
1. Vertical slideway for advance and retreat blade up and down. Cutting feed is steady and cutting tools are of long use life. High precision of saw cutting.
2. European design, many groups of tooth gearing, suit to heavy duty cutting, the accuracy is steady.
3. Elaborate design for material feed system.
4. Elaborate design for material feed floating system so as not to damage the surface of work piece and with high precision of material feed.
5. Special main clamp design, the strength is solid.
6. Use PLC controller, no connected piint, no fault and easy for maintenance.
7. Cooling liquid automatic circulation to secure the smoothness of cutting surface of work piece.
8. Centralized control button. Easy and simple operation.
9. Equipped with electric saw cutting number setting and total number.
10. Automatic stop when without material.
11. Saw pieces are centralized for disposal to make convenieny and clean.
Standard configuration.
1. machine one set
2. oil system
3. maintenance tool
4. digisplay feeding length system
5. automait control electrcal apparatus system.
