OEM CNC loading pipe processing production line with rolling , punching and shrinking – IMG Machinery Equipment

Product Description

This fully‑automatic integrated tube processing production line combines automatic loading, feeding, tube bending and multi‑station tube end‑forming in one system. It is engineered for high‑volume manufacturing of metal tubular components widely used in automotive parts, agricultural livestock equipment, furniture piping and general metal fabrication industries.

The line eliminates repeated manual handling between separate machines. Raw tubes are automatically fed into the system, completing a full sequence of processes including bending, flaring, shrinking, upsetting and other tube‑end operations in a single production cycle. Additional modules such as cutting, punching and chamfering can be integrated upon customer requirements to realize a complete one‑stop tube‑fabrication workflow.

Built with heavy‑duty mechanical frame and reliable hydraulic & servo drive system, the production line delivers consistent dimensional accuracy for mass‑produced workpieces. It effectively cuts down labor input, lowers human‑caused errors, and greatly improves overall production efficiency. The machine supports carbon steel, stainless steel and aluminum alloy tubes, and can be tailored according to customers’ tube specifications and process flow.

Automatic tube loading & conveying system, realizing unmanned continuous running

• Integrated tube bending and multi‑station tube end‑forming (flaring, shrinking, upsetting)

• Flexible expandable structure: compatible with cutting, punching, chamfering modules

• Servo‑hydraulic hybrid drive for stable performance and high repeat precision

• Suitable for carbon steel, stainless steel, aluminum tubular workpieces

• Custom‑tailored layout & process configuration for different production requirements

• Centralized PLC control panel, easy for parameter setting and production monitoring

Parameters

This production line supports aluminum alloy tubes with an outer diameter of 60 mm. It is equipped with tube shrinking and  rolling .

• Tube outer diameter range: up to Φ60 mm for aluminum alloy
• Tube shrinking module: capable of multi‑step diameter reduction, stable forming for aluminum pipes
• Round rolling module: corrects tube ovality after forming, ensures roundness tolerance
• Wall thickness range: 1.0–4.0 mm (aluminum alloy tube)
• Max. forming stroke: 120 mm
• Positioning repeat accuracy: ±0.03 mm

Production  Line  Picture

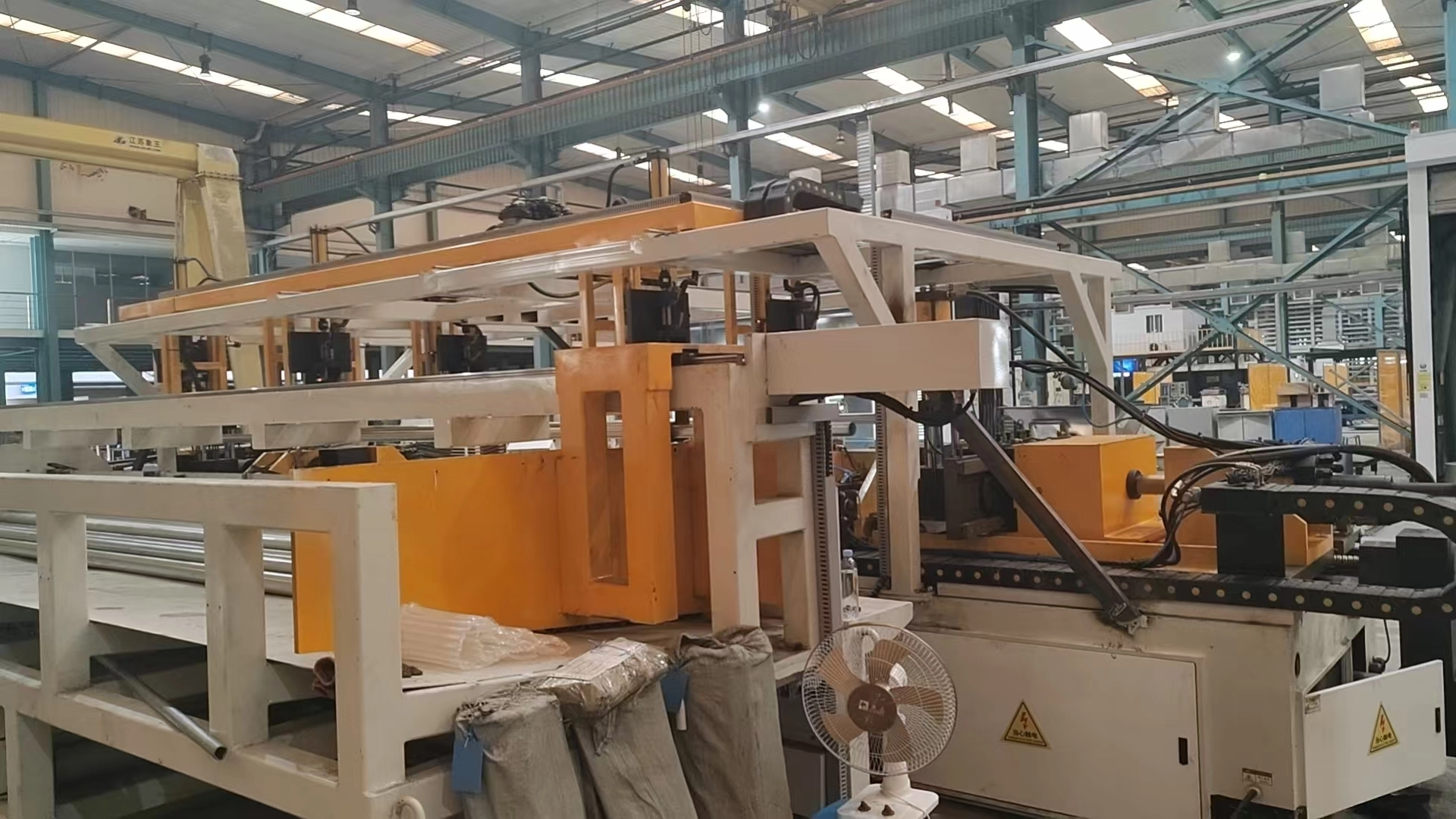

automatic tube processing production line

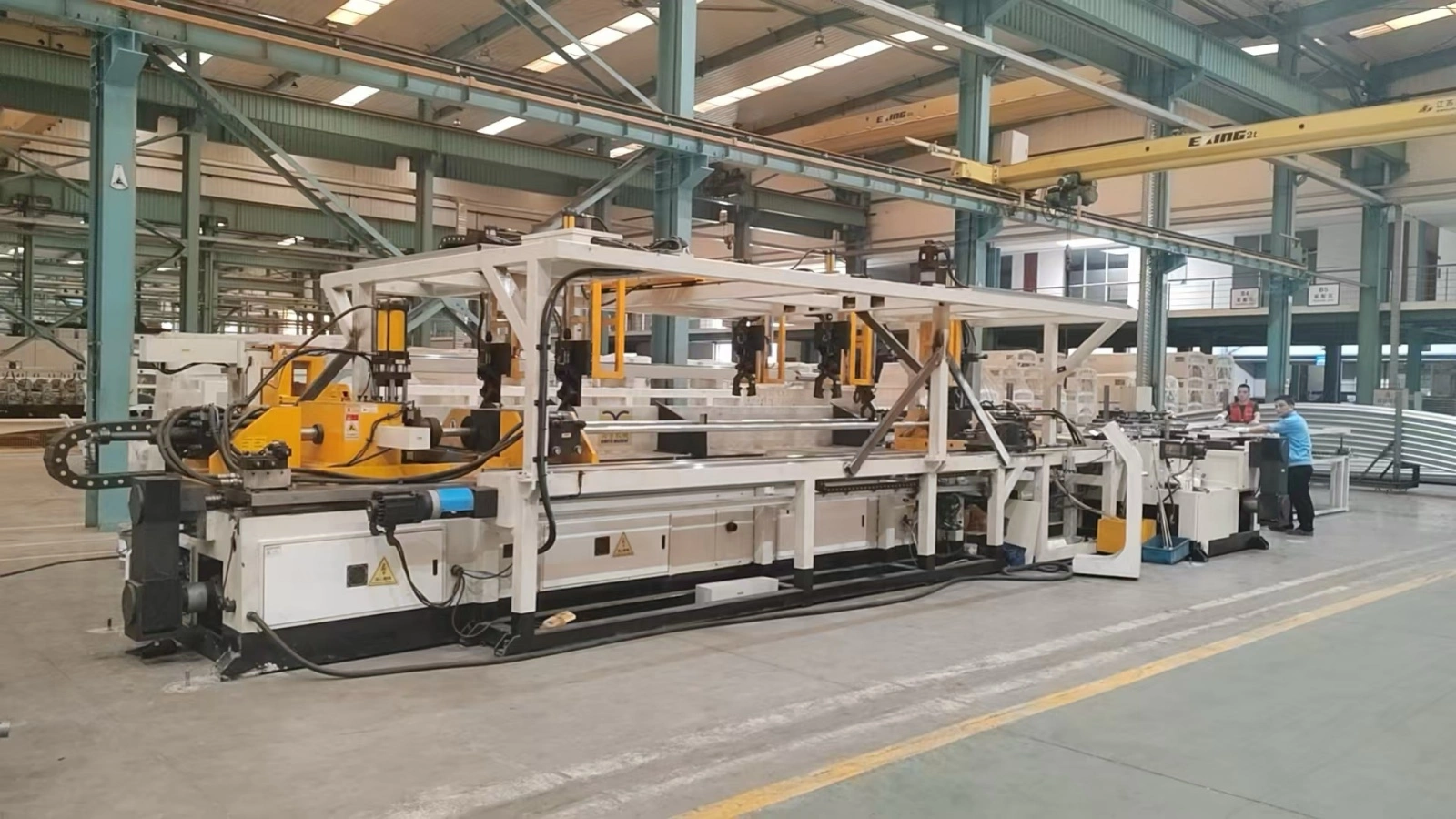

tube rolling  production line

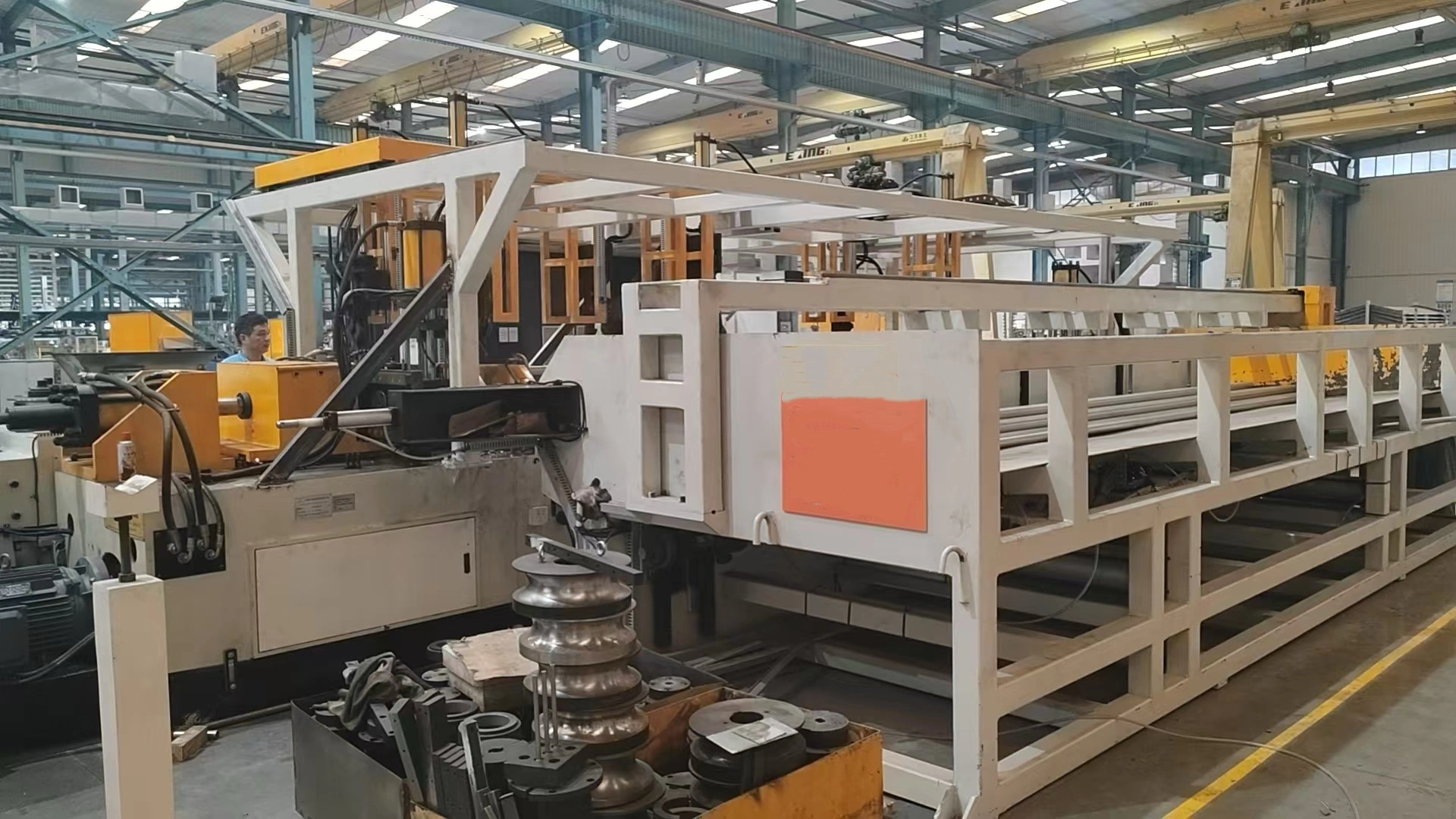

auto loading tube fabrication line

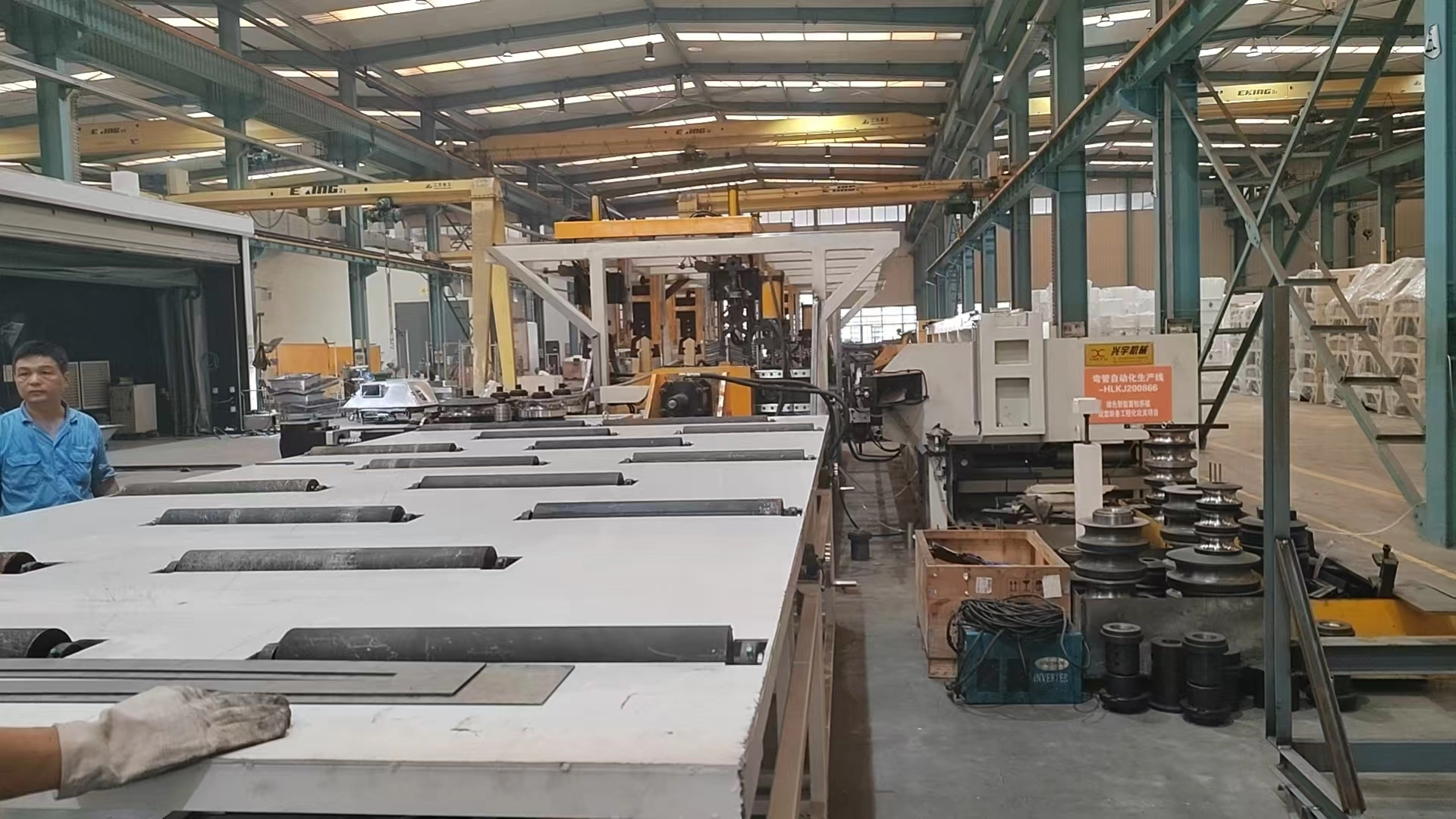

cnc tube end forming integrated line
custom metal tube processing machine

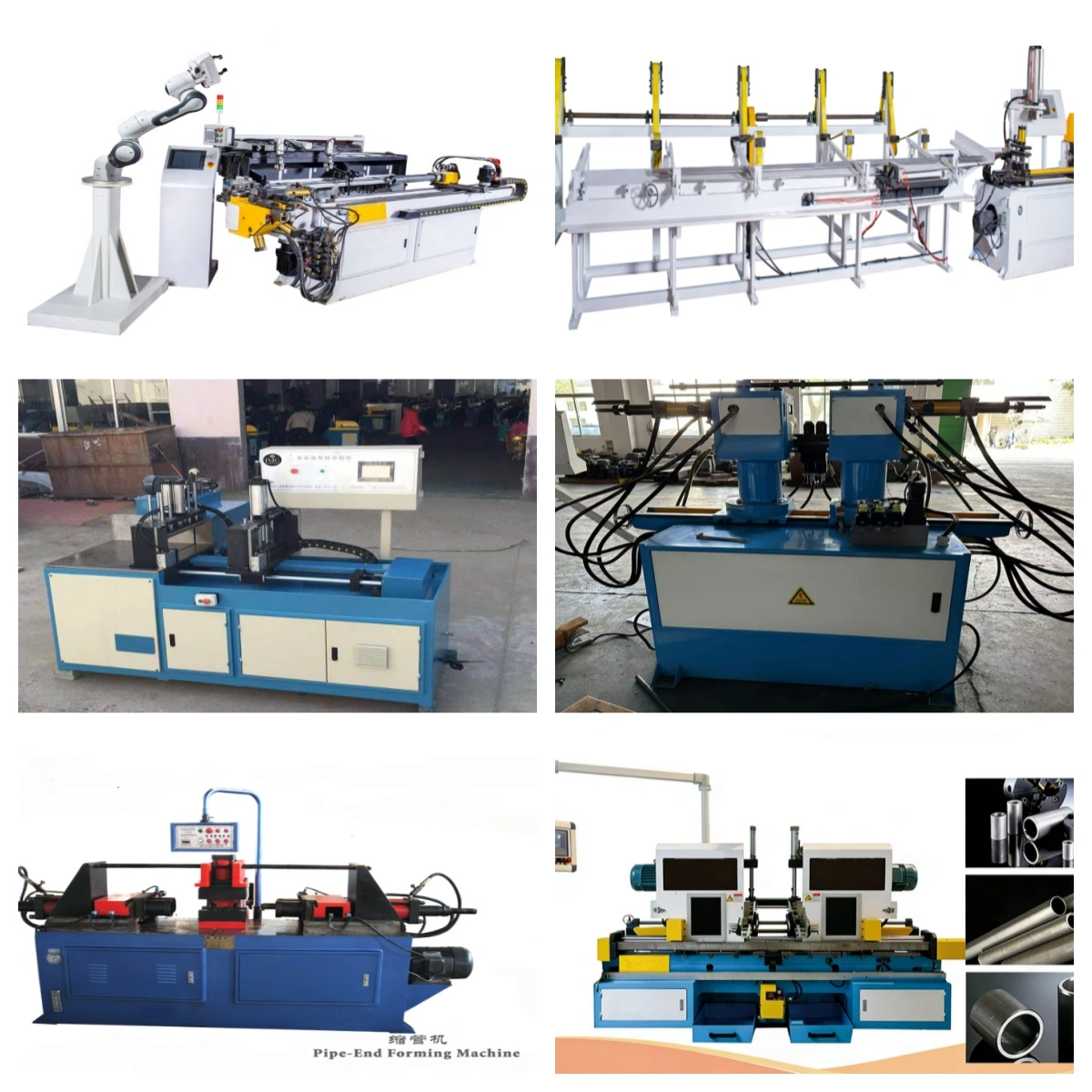

More pipe processing machines

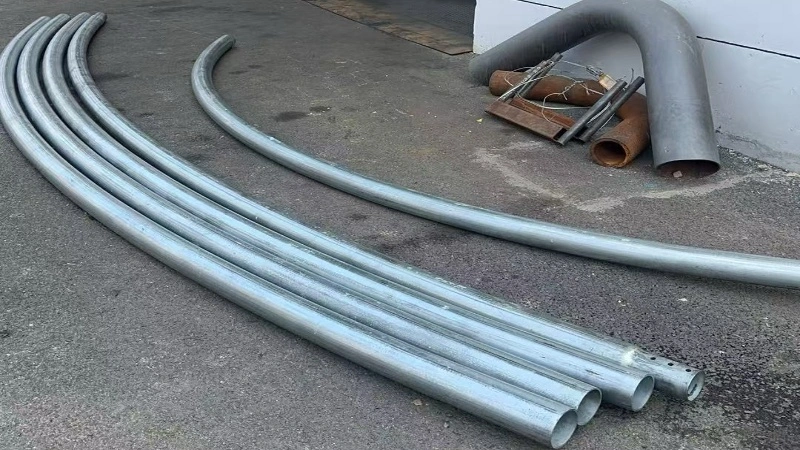

More  Finished Tube samples show
