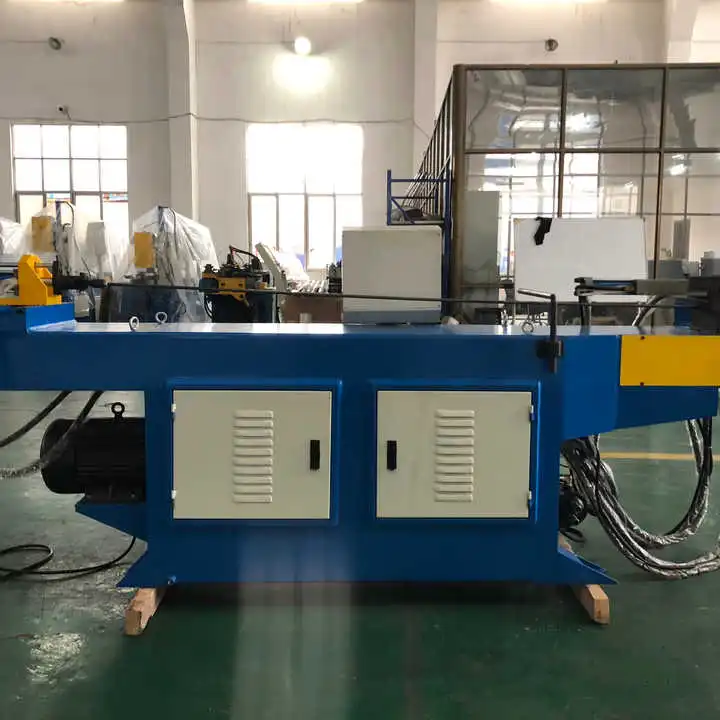

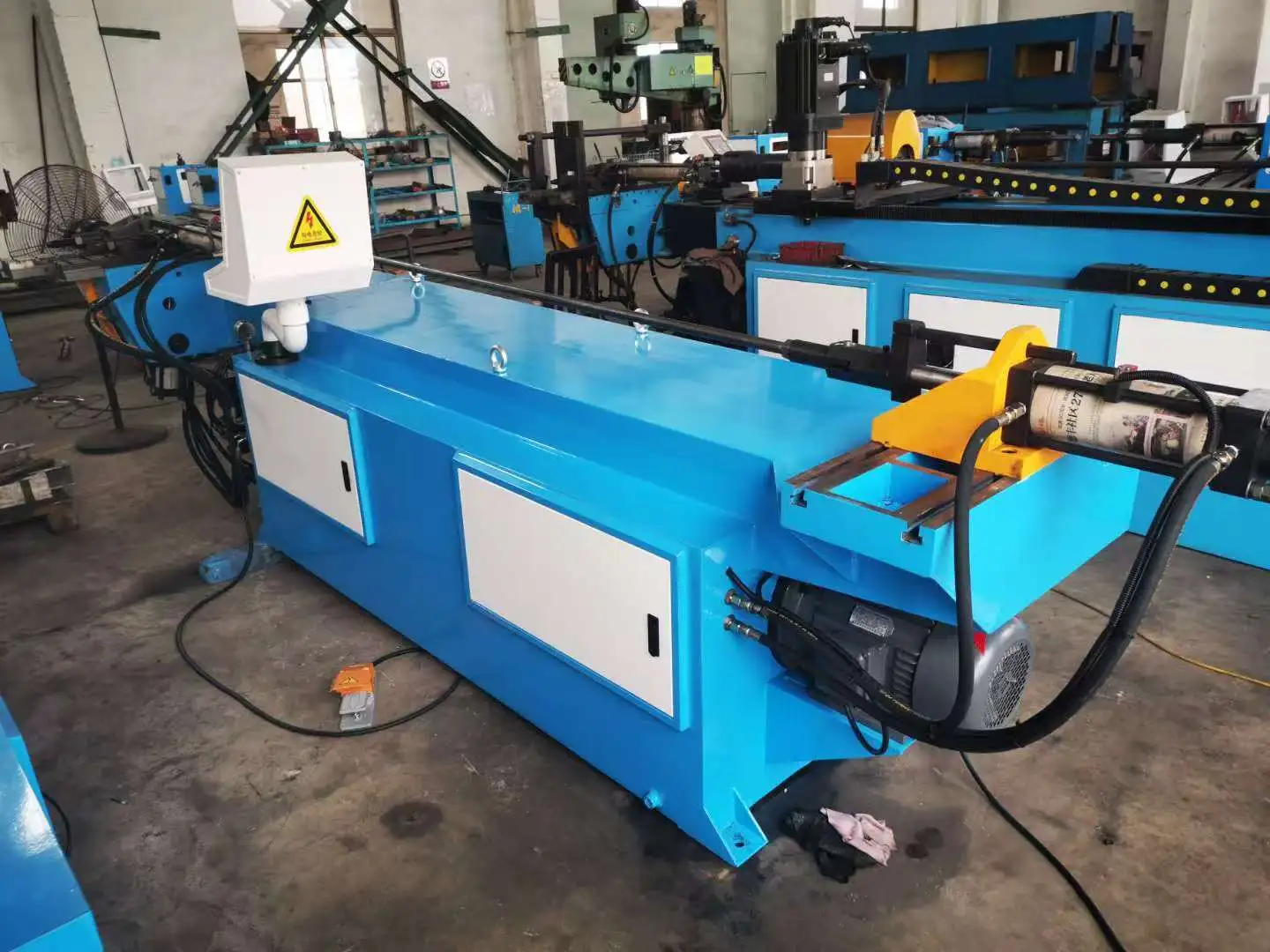

DW75NC 75 มม. เครื่องดัดท่อกลม / สี่เหลี่ยม
| เวลาเก็บรักษา | 2026-7-22 |
| รุ่น | DW75NC |
| ข้อมูลจําเพาะ | 10mm up to 75mm |

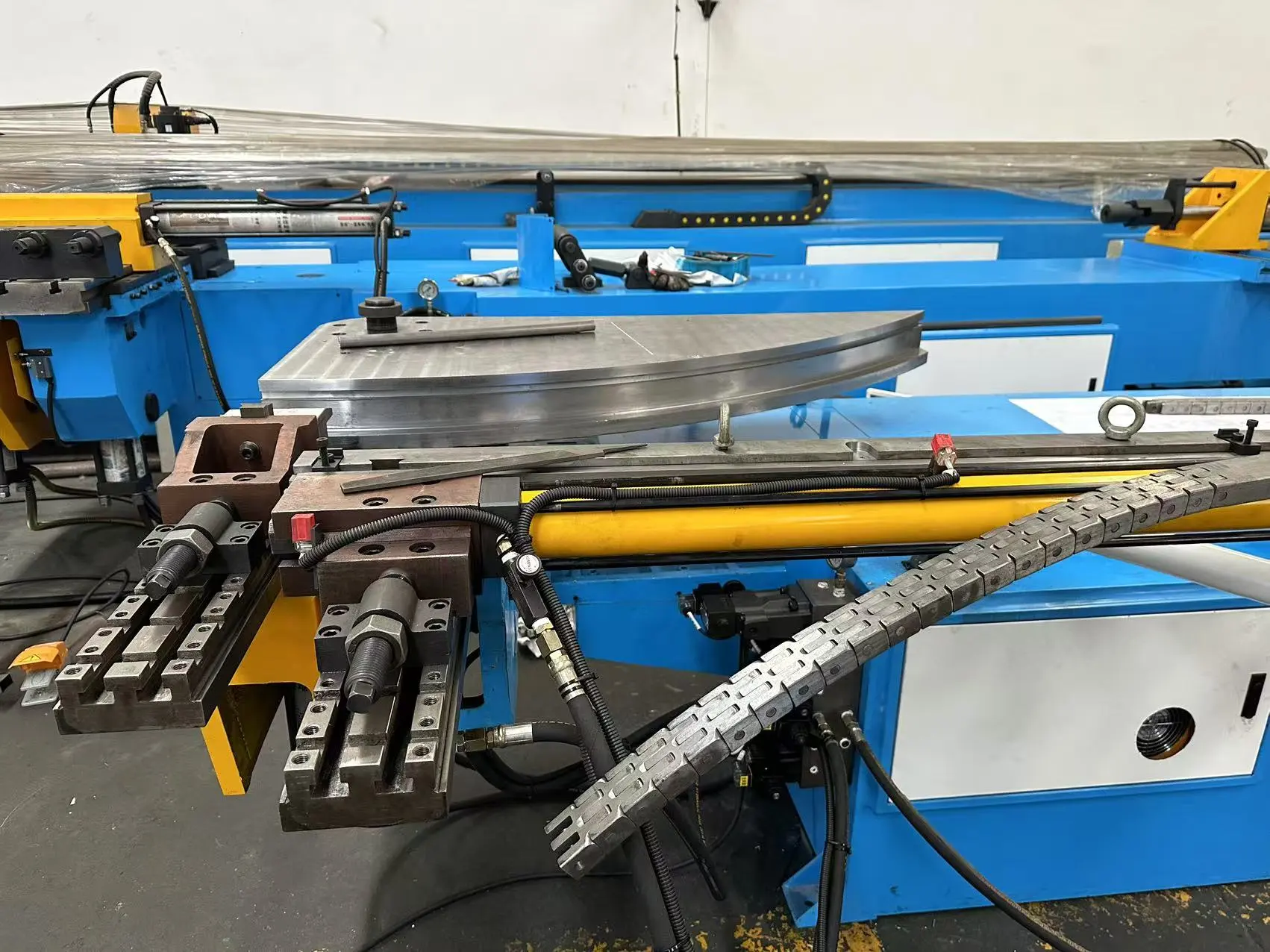

The machine mainly consists of main transmission mechanism, mandrel mechanism, pushing mechanism, clamping mechanism, electrical system and hydraulic system.

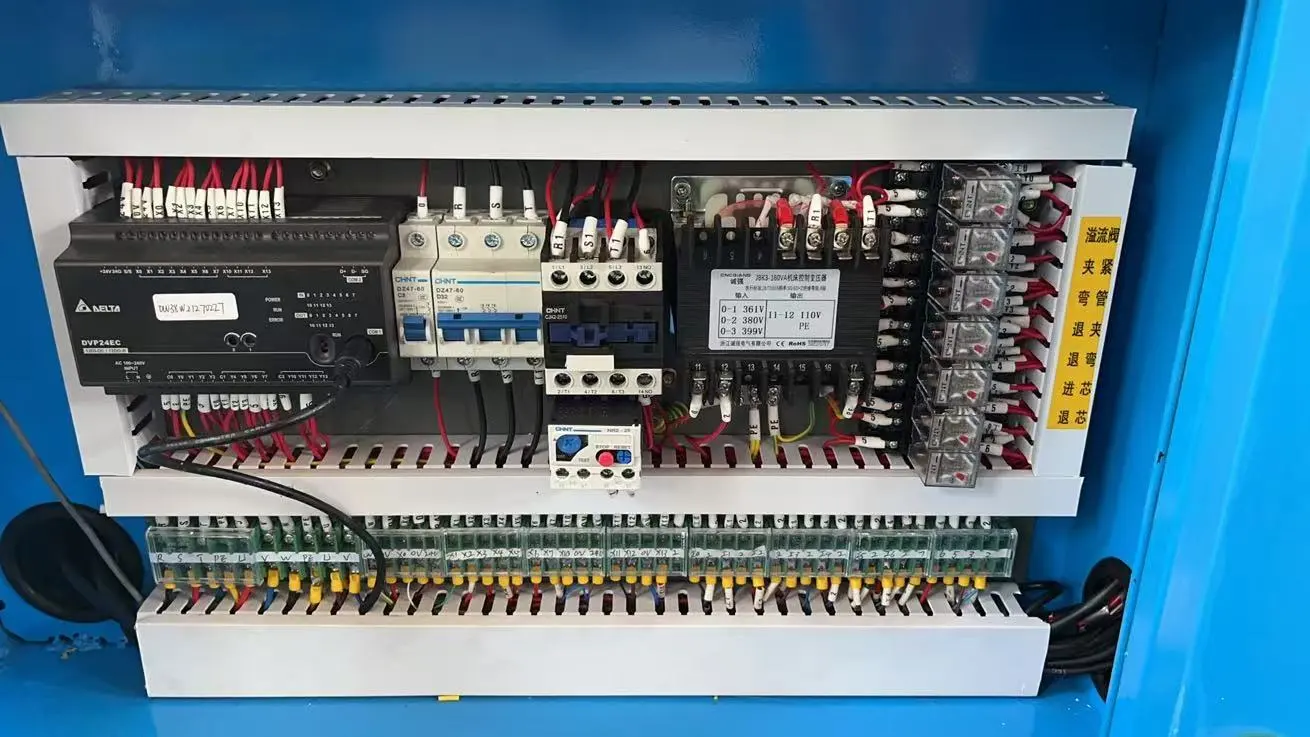

During operation, the motor drives the oil pump to generate pressurized oil. The PLC sends commands to control opening and closing of each solenoid valve. All oil cylinders act in preset sequence to realize tube bending.
| รายการ | ข้อมูลจําเพาะ |
| รุ่น | DW75WNC |
| Max. Tube Bending Capacity (mm) | Φ75×2, A3 steel |
| Bending Radius Range (mm) | R50–300 |
| Max. Bending Angle (deg) | 195º |
| Effective Max. Mandrel Travel (mm) | 2800 |
| Bending Accuracy (± deg) | 0.1° |
| Bending Speed (°/sec) | 44°/s |
| Motor Power (kW) | 7.5 |
| Hydraulic Working Pressure (MPa) | 14 |
| Overall Machine Dimension (mm) | 3600×950×1400 |
| Approx. Weight (kg) | 2500 |
| Oil Pump Model | P222RP01DT |
| Pump Displacement (L/min) | 22 |
| Hydraulic Oil | 32# anti-wear hydraulic oil (Winter) 46# anti-wear hydraulic oil (Summer) |
This DW75WNC hydraulic pipe bending machine is applicable for cold forming of carbon steel, stainless steel, aluminum and copper tubes with diameter up to 75mm, widely adopted in the below industries:
1. Automotive & Motorcycle Manufacturing
Car seat frames, exhaust pipes, brake oil pipes, motorcycle frames, handlebars and chassis pipe parts.
2. Metal Furniture & Handcart Production
Iron chair frames, wheelbarrow frames, outdoor metal tables, strollers and storage rack tubular structures.
3. Fitness & Sports Equipment
Treadmill frames, gym equipment support pipes, sports guardrails and training equipment brackets.
4. Construction & Decoration Engineering
Stair handrails, balcony guardrails, outdoor street lamp frames, architectural tubular structural parts.
5. HVAC & Sanitary Ware
Air conditioning pipeline, water supply & drainage pipes, bathroom hardware tubular fittings.
6. Agricultural & Construction Machinery
Farm machine support frames, small engineering vehicle pipe frames, irrigation pipeline fittings.
7. Shipbuilding & General Pipeline Processing
Small ship pipeline, chemical delivery pipes, boiler auxiliary pipelines and mechanical hydraulic tubing.
