IMG 130NC Heavy Duty NC Hydraulic Large Diameter Pipe Bender

Product Description

The IMG 130NC is a heavy‑duty hydraulic pipe bender engineered for large‑diameter metal tubes. It features an NC (Numerical Control) system, with manual tube loading and indexing, plus automatic hydraulic bending action. Boasts high rigidity, stable performance and precise bending accuracy, widely applied in steel structure, pipeline engineering, construction machinery, shipbuilding and related heavy industries.

ScreenShot_2026-03-18_095246_130_副本

Main Technical Specifications

  • Max. bending capacity: Φ130 mm × 8–10 mm (carbon steel / stainless steel)
  • Minimum bending radius: R ≥ 1.5D
  • Maximum bending radius: 520 mm
  • Maximum bending angle: 190°
  • Maximum tube loading length: 4500 mm (customizable upon request)
  • Control system: NC controller with angle encoder
  • Drive type: Hydraulic drive
  • Main motor power: approx. 22 kW
  • Applicable profiles: round pipe, square pipe, rectangular pipe, angle iron, shaped tubes

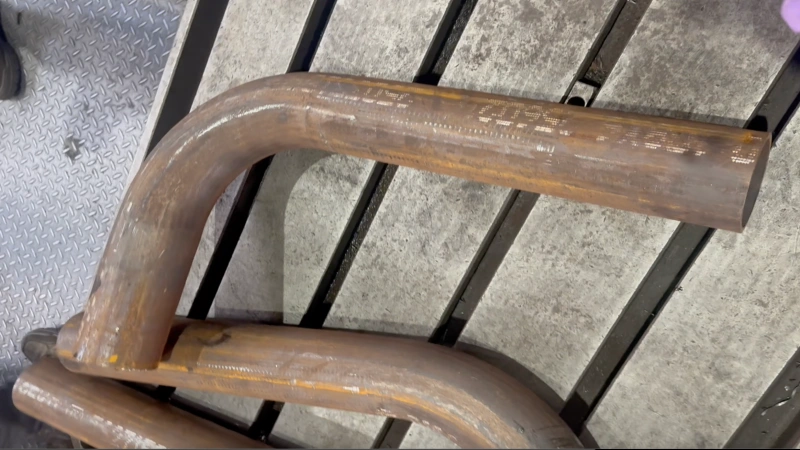

c445b0532993c9737da4f6d0b8e38dac_副本

Machine Structure & Functions

  • Clamping system: Hydraulic three‑point clamping, firm grip with no slippage.
  • Bending mechanism: High‑torque hydraulic cylinder with plate chain drive, encoder for precise angle positioning and slow‑bend control.
  • Mandrel system: Hydraulic mandrel retraction (selectable on/off) to prevent ovality and surface wrinkling.
  • Boosting function: Synchronized side boost, enhancing bending quality especially for thick‑walled pipes.
  • Tooling: Quick‑change mold design for fast setup and high productivity.

Operating Modes

  • Manual mode: Single‑step operation for clamping, bending, mandrel movement, return.
  • Semi‑automatic mode: One‑key automatic bending cycle after angle presetting.
  • Automatic cycle: Multi‑bend program storage for continuous, unattended batch production.

Key Advantages

  • Heavy‑duty integral cast frame for maximum rigidity and vibration damping.
  • Encoder‑based closed‑loop angle control for consistent bending precision.
  • Hydraulic system with efficient cooling unit for stable operation in harsh industrial conditions.
  • Flexible mode switching, ideal for both mass production and small‑batch custom jobs.
