Pipe bending equipment is generally divided into semi‑automatic pipe bender and fully‑automatic (CNC servo) pipe bender. Many buyers confuse their definitions. The core distinction lies in which movements are automated, not merely the appearance or name of the machine.
1. Core Definition
Semi‑Automatic Pipe Bender (Mostly WNC hydraulic‑NC type) Only the bending motion is automated. Operators are required for manual loading, unloading, tube positioning and manual tube rotation between bends. The machine executes bending cycle after human trigger.
Fully‑Automatic Pipe Bender (CNC Servo Pipe Bender) Y‑axis (feeding), B‑axis (tube rotation), C‑axis (bending) are servo‑driven. After program input, feeding, tube rotation and bending run automatically. Manual work is only raw‑pipe loading and finished‑part removal. It supports complex 3D multi‑plane bending.
2. Comparison Table
| Comparison Item | Semi‑Automatic Pipe Bender (WNC Hydraulic NC) | Fully‑Automatic CNC Servo Pipe Bender |
|---|---|---|
| Axis drive | Bending: hydraulic;Feeding & tube rotation: manual / simple hydraulic | Bending: hydraulic;Feeding(Y) & Rotation(B): full servo motor |
| Bending capability | Only 2‑D planar bending. Cannot auto‑rotate tube for multi‑plane parts. | 2D & full 3D spatial multi‑angle bending in one clamping |
| Program & storage | Store limited bending‑angle data, no coordinate conversion | Touch‑screen HMI; store hundreds of part programs; XYZ‑YBC coordinate conversion; independent speed / compensation per bend |
| Angle repeat accuracy | ±1° ~ ±2°, affected by manual operation | ±0.05° ~ ±0.15°, stable batch consistency |
| Operation workflow | Manually load → position tube → trigger bend → manually rotate tube (if needed) → unload finished part | Load raw tube → call stored program → auto feed‑rotate‑bend → unload finished part |
| Mandrel function | Manual mandrel retract | Optional auto‑mandrel retract & auto‑lubrication |
| Typical production volume | Low‑medium batch, frequent prototype change‑over | Medium‑high‑volume mass‑production |
| Labour requirement | 1 operator for 1‑2 machines | 1 operator can supervise multiple machines |
| Investment cost | Low‑medium purchase cost | Higher initial investment |
| Maintenance difficulty | Simple hydraulic system, low maintenance cost | Servo + electric control system; higher requirement for technician skill |
| Automation expandability | Cannot connect to robot loading / robotic cell | Reserved signal interface for robot‑loading unit or full robotic bending cell |
3. Typical Application Scenarios
Semi‑Automatic Pipe Bender (WNC)
- Carbon‑steel handrails, simple 2‑D frames, guard rails.
- Small‑batch production, frequent drawing change‑over, sample making and prototype trial.
- Budget‑sensitive projects, simple planar bent parts without spatial rotation.
Fully‑Automatic CNC Servo Pipe Bender
- Automotive exhaust, chassis parts, seat frames, sanitary‑ware tubing.
- Stainless‑steel thin‑wall tube, tight‑radius bending R＜1.5D.
- Complex 3D multi‑plane bent workpieces.
- Mass‑production requiring stable repeat accuracy.

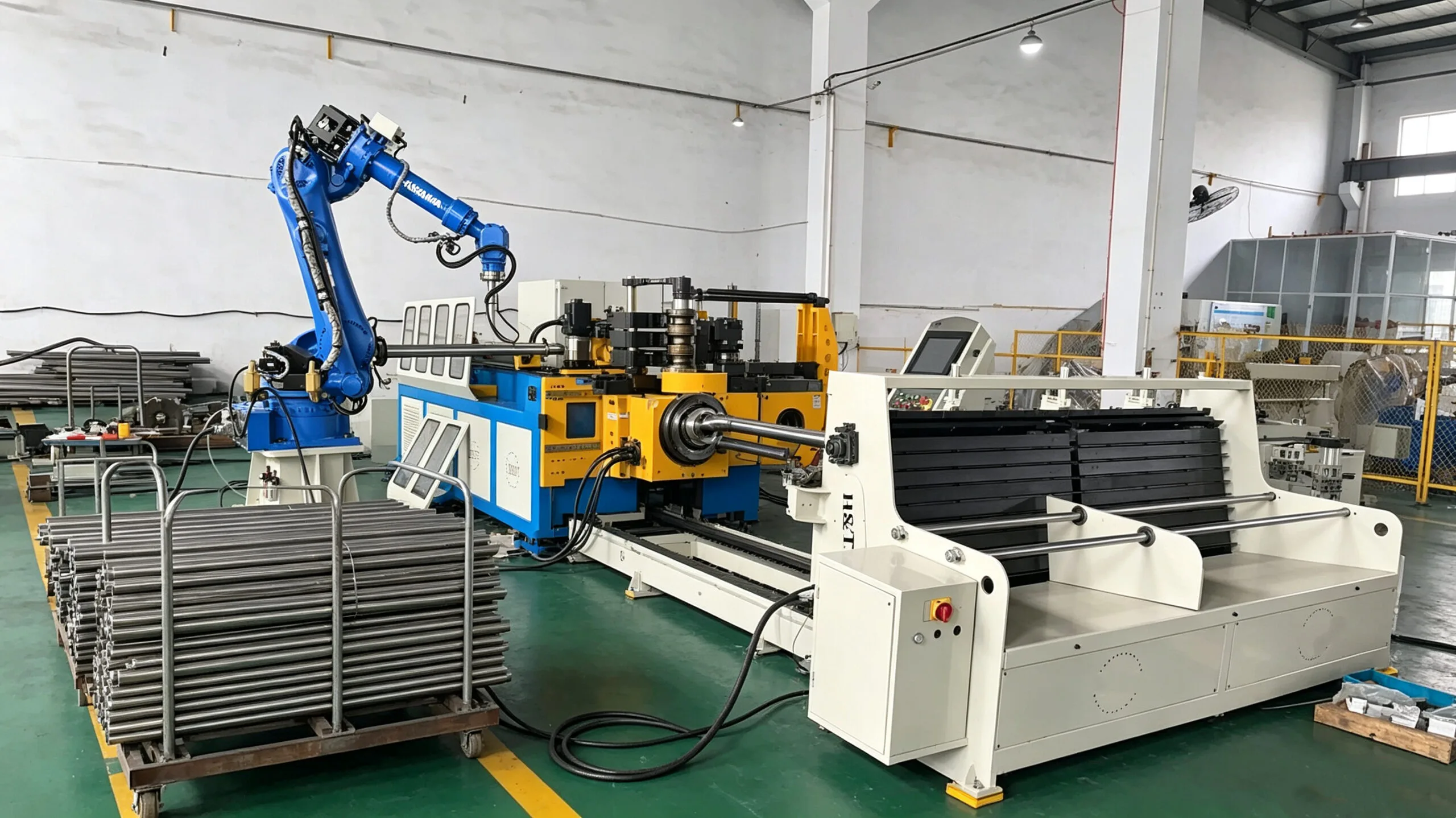

- Future upgrade plan to add robot loading or robotic cell.
4. Practical Reminders
- Some suppliers mark hydraulic‑NC semi‑auto machine as “CNC”, check whether feeding and tube‑rotation axes are servo‑driven.
- Semi‑auto WNC can do 3D‑like parts, but tube must be manually re‑positioned and rotated between bends; consistency will drop.
- If you plan to add robot automation later, you must select full‑servo CNC model; semi‑auto WNC cannot be retrofitted.
Automatic VS Semi‑Automatic Pipe Bending Machine
Q1: What is the essential difference between semi‑automatic and fully‑automatic pipe bender?
A: Whether feeding(Y‑axis) and tube rotation(B‑axis) are automatically driven by servo motors. Semi‑automatic WNC only automates bending movement; feeding and tube rotation rely on manual operation. Fully‑automatic CNC servo completes feeding, rotation and bending automatically after program setup.
Q2: Can semi‑automatic WNC machine make 3D spatial bent pipe parts?
A: Physically possible but not automatic. Operator needs to take out and manually rotate the tube between each bend. Poor dimensional consistency, low efficiency, not suitable for mass‑production.
Q3: Why angle accuracy differs a lot between semi‑auto and fully‑auto machines?
A: Semi‑auto accuracy is disturbed by human positioning error, tolerance ±1~±2°. Fully‑automatic servo‑driven axes eliminate manual error; repeat accuracy reaches ±0.05‑0.15° for stable batch quality.
Q4: My parts are only simple 2‑D planar bending, do I have to buy fully‑automatic CNC?
A: For small‑medium batch, semi‑automatic WNC is cost‑effective. If you run high‑volume production even for 2D parts, fully‑automatic CNC improves consistency and saves labour.
Q5: Can I retrofit my existing semi‑automatic WNC bender into fully‑automatic or connect robot loading?
A: No. WNC lacks servo axes and external signal‑handshake communication interface. Robot‑loading or robotic cell must use full‑servo CNC pipe bender.
Q6: Some vendors name WNC hydraulic‑NC as “CNC pipe bender”, how do I identify real fully‑automatic CNC model?
A: Confirm two points:
- Is tube feeding driven by servo motor?
- Is pipe rotation between bends driven by servo motor? If both answers are no, it is semi‑automatic hydraulic‑NC machine, not real fully‑automatic CNC.
Q7: Which one has lower maintenance cost?
A: Semi‑automatic WNC has simpler hydraulic components, lower spare‑part cost and easier maintenance. Fully‑automatic CNC needs regular maintenance for servo motors, PLC and electrical cabinet, requiring better‑trained technicians.
Q8: Which machine fits sample‑making and frequent product change‑over?
A: Semi‑automatic WNC is more flexible for small‑batch trial‑production and frequent drawing change‑over, with shorter setup time for one‑off samples.
Q9: What key information should I provide to select between semi‑auto and fully‑auto machine?
A: Pipe material, OD & wall thickness, bending radius, whether parts are 2D or 3D, batch quantity per month, future automation upgrade plan, project budget.
Q10: If I may add robotic automation in future, which machine should I choose now?
A: Choose fully‑automatic CNC servo pipe bender, which reserves signal‑interaction interface for robot‑loading unit or robotic cell. Semi‑automatic WNC cannot support later automation upgrade.
Q11: Can fully‑automatic CNC machine run in semi‑manual mode?
A: Yes. Most CNC servo benders support manual / jog mode for mold testing, sample adjustment and troubleshooting.
Q12: For stainless‑steel thin‑wall tube bending, can I choose semi‑automatic WNC?
A: You can make individual samples, but not recommended for mass‑production. Manual positioning brings unstable dimension and surface scratches. Fully‑automatic CNC plus matched mandrel and wiper die delivers better yield rate.
