धातु पाइप/ट्यूब झुकने की मशीन
पाइप प्रसंस्करण और पाइप झुकने फिटिंग के लिए उपयोग किया जाता है
उत्पाद क्षेत्र: विभिन्न पाइपों के प्रसंस्करण के लिए एयरोस्पेस, मोटर वाहन विनिर्माण, पेट्रोकेमिकल्स, चिकित्सा उपकरणों, समुद्री शक्ति, एचवीएसी, रसोई और बाथरूम उद्योगों को कवर करना।
लेजर पाइप/
ट्यूब काटने की मशीन
आवेदन: यह लेजर पाइप काटने की मशीन उच्च परिशुद्धता पाइप काटने को प्राप्त कर सकती है।
धातु पाइप अंत सिकुड़ने और विस्तार मशीन
इसका उपयोग पाइपों के व्यास को कम करने और विस्तार करने, व्यास भिन्नता को साकार करने, डॉकिंग आवश्यकताओं को पूरा करने के लिए किया जाता है
Since 1989
37-Year Manufacturing Expertise
50+ Skilled Employees
From Standalone Units to Fully-Automated Production Lines
उत्पाद
Zhangjiagang IMG मशीनरी उपकरण कं, लिमिटेड
Zhangjiagang IMG Machinery Co., Ltd.
Established in 1989, 37 years of proven craftsmanship, we specialize in manufacturing high‑quality pipe processing machines, including pipe bending machines, laser cutting machines, laser punching machines, cold saw machines, pipe end forming machines, pipe swaging/tapering machines, pipe embossing machines, pipe notching machines and other automatic pipe‑processing equipment ranging from simple models to complex CNC‑controlled ones.
The company has more than 50 employees, among whom engineering technicians with intermediate or higher professional titles account for 28% of the total workforce. We have a PhD‑led R&D team, and have obtained the certification for National First (Set) Major Technical Equipment as well as undertaken one provincial‑level research project.
Our professional engineers are committed to delivering complete one‑stop solutions for the pipe‑processing industry based on market demands. Meanwhile, we keep innovating and upgrading our pipe cutting machines, tube benders, copper & aluminum cutting machines and other tube processing equipment.
Services: Engineering Evaluation, Sample Testing, FAT, Overseas Installation, Spare Parts & Equipment Upgrades
In 1989, the enterprise was restructured from a state owned enterprise into a private enterprise. In 1990, it was officially renamed Zhangjiagang Xingyu Machinery Manufacturing Co., Ltd., stepping into the pipe-bending equipment industry.
We produce more than 10 series of machinery: metal circular sawing machines, SW series double-head tube benders, DW series single-head tube benders, PS series tube end forming machines, MG series gear grinding machines, YU series gantry tube benders and KR series riveting machines.
In 2020, the brand IMG was launched to explore overseas markets.
Our factory relocated to a new industrial park in 2024. With expanded production space and standardized workshop layout, we specialize in manufacturing a full range of tubeprocessing machinery.
मुख्य उत्पाद
पाइप झुकने की मशीन
लेजर काटने की मशीन
धातु पाइप काटने की मशीन
पाइप एंड्स बनाने की मशीन
अनुकूलित उत्पादन लाइन
Custom‑Engineered Tube End‑Forming Solutions
Explore our successful projects delivered for global pipe manufacturers.

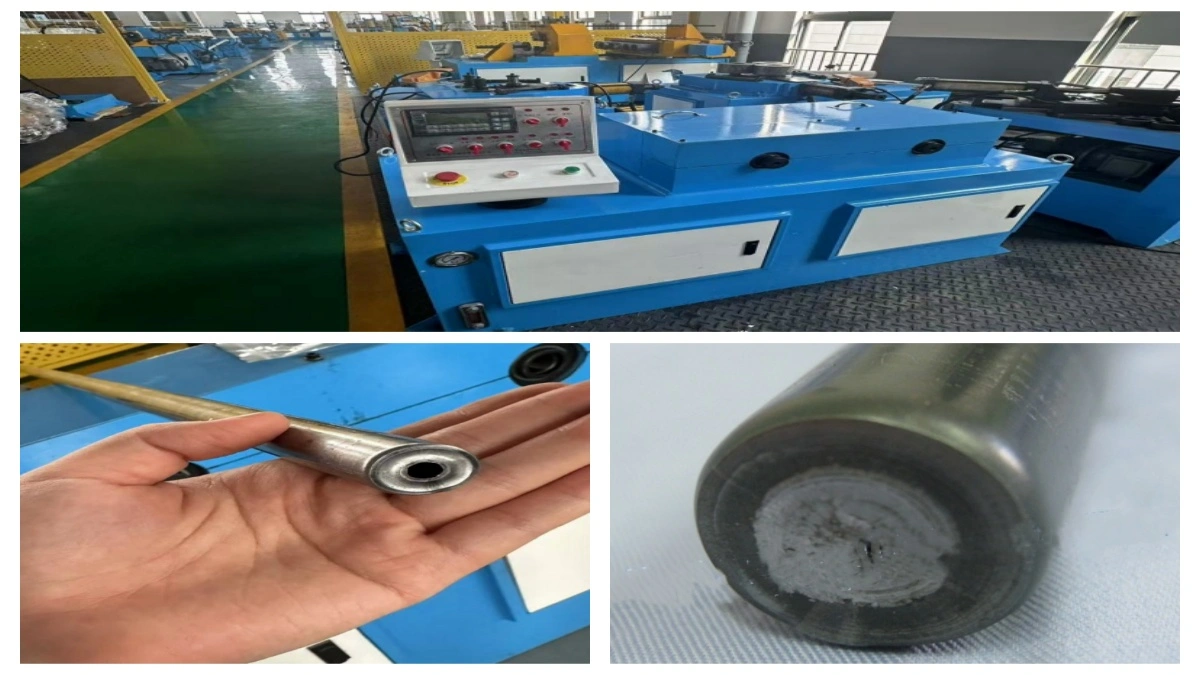

FK40 with 2 tools Stainless Steel Tube End Closing for Bathroom Radiators (Poland Market)
This tube end closing machine is specially developed for closing ends of stainless‑steel tubes used in bathroom radiators. .Suitable for stainless steel round tubes for heating radiators. Supports flat closing, round dome closing by changing moulds.
- CE certified for EU market, configured for 3‑phase 400V 50Hz Poland power grid
- PLC + touch‑screen control, stable repeat accuracy
- Moulds customizable according to radiator tube OD & wall thickness
- Available services: Sample Testing, FAT, Overseas Installation, Spare Parts & Equipment Upgrades
- Widely applied for bathroom radiator, towel radiator heating tube manufacturing for Poland & EU customers.
450 Automatic Pipe Cutting Machine Customized For USA Customer
3 sets of Model 450 automatic pipe cutting machines were customized for a US pipe manufacturer. Designed for 12m extra-long 2×2 inch square tubes, the solution achieved 4-tube simultaneous cutting, automatic discharge and stable mass production.
Working Parameters & Custom Configuration
- Processing material: 12m extra-long 2×2-inch square steel tube
- Production capacity: Mass cutting of 4 tubes simultaneously per cycle
- Custom upgrade: Full-length extended material support rack + automatic discharge conveyor belt
- Acceptance standard: Passed on-site third-party inspection designated by the US customer
Custom Tube Line For Livestock Projects, Reducing, Punching & Rolling
This custom‑built production line is specially developed for livestock pen and breeding‑fence projects, integrating three core functions: tube‑end reducing, CNC hole punching and tube circle rolling, to complete continuous one‑stop tube processing.
It works well with hot‑dip galvanized round & square tubes, ideal for cattle neck yokes, animal pens, farm fencing and barn structural components.
Equipped with servo feeding and hydraulic forming, the line performs end reducing, multi‑station punching and arc / full‑circle rolling in a single clamping cycle without repeated reloading. PLC touch‑screen control stores multiple process recipes for livestock parts, enabling fast size change‑over.
Heavy‑duty machine frame supports long‑hour mass production. Quick‑change mold design allows fully‑customized stations and forming dimensions according to customer project drawings for non‑standard orders.
Custom PS80B Single-Head Double-Station Tube End Forming Machine For Automotive pipe
This is a non-standard customized PS80B single-head double-station tube end forming machine for an Indian customer.The machine integrates two core functions: tube reducing and tube upsetting/expanding, specially optimized for processing carbon steel tubes with OD 49.1mm and wall thickness 1.6mm.
According to the customer’s strict technical drawing requirements, the machine is equipped with two sets of dedicated forming molds.Both the reducing process and the upsetting process adopt two-step progressive forming technology.This advanced segmented processing effectively avoids common defects of thin-wall carbon steel tubes, such as cracking, wrinkling and deformation. All finished products fully comply with the customer’s high-precision dimensional tolerance standards.
From Drawings to Long-Term Production Support
Our nine-step service procedure covers technical evaluation, solution development, machine production, acceptance inspection, delivery and ongoing support.
Submit Drawings
Send tube drawings, material specifications, dimensions, tolerances, target output and other production requirements.
Technical Evaluation
Our engineers assess process feasibility, machine requirements, tooling, automation and workshop conditions.
Solution & Quotation
Receive a proposed machine configuration, technical solution, scope of supply and commercial quotation.
Sample Testing
Customer samples or specified materials are tested to verify the proposed process and expected results.
Custom Mold & Machine Production
Custom tooling and machine production begin after the technical solution and order details are confirmed.
Debugging & Sampling
The completed machine is commissioned, adjusted and used to produce samples against the agreed requirements.
FAT Inspection
Factory acceptance testing verifies machine functions, sample quality and agreed acceptance criteria before shipment.
Shipment & Overseas Service
The equipment is prepared for shipment, with overseas installation, commissioning or training support where agreed.
Spare Parts & Upgrades
Ongoing support includes replacement parts, technical assistance and upgrade options for changing production needs.
Prepare these details for a faster proposal: tube drawing, material, diameter, wall thickness, bend or forming requirements, target output and factory voltage.
Various Tube End‑Forming Samples By IMG Machinery Equipment
अपनी उत्कृष्ट स्थिरता और उच्च परिशुद्धता प्रदर्शन के साथ, यह वैश्विक ग्राहकों को उत्पादन दक्षता में सुधार करने और जटिल पाइप झुकने वाली संरचनाओं के तेजी से प्रोटोटाइप प्राप्त करने में मदद करता है।
