Focus on Robot Working Cycle, Payload and Working Radius
What is a Robotic Pipe Bending Production line?

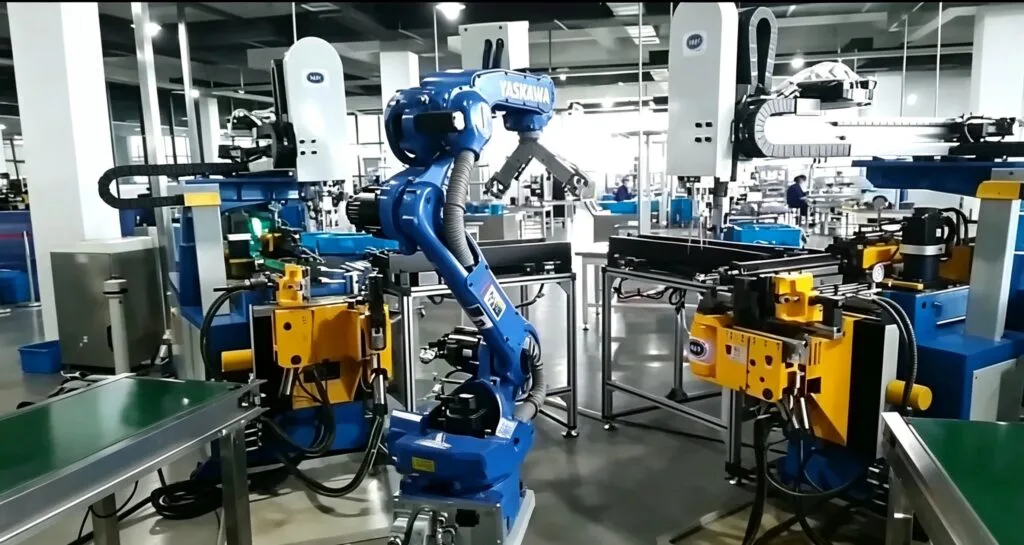

A robotic pipe bending production is an automated system that combines a 6-axis industrial robot and a CNC pipe bender. It replaces manual loading and unloading to achieve fully automatic tube feeding, bending, pick-and-place and stacking. The whole production cycle is completed by the robot, which defines the machine’s maximum processing size and weight via its payload and working radius (reach).
What is the complete robot working flow in a pipe bending production line?
The robot runs in a closed-loop automatic cycle without manual intervention.
Step 1: Pipe Picking
The robot grabs raw straight tubes from the material rack with a dedicated pipe gripper. It ensures stable clamping to avoid slipping or scratching the tube surface.
Step 2: Precision Loading
The robot positions the tube and inserts it accurately into the CNC bender clamping area. After positioning, the bender clamps the pipe and starts the bending program.
Step 3: Bending Waiting & Position Cooperation
During CNC bending, the robot keeps a safe standby position. For long tube processing, the robot supports the tube in real time to prevent sagging and deformation.
Step 4: Automatic Unloading
Once 2D / 3D bending is finished, the robot takes out the finished pipe from the bending mold.
Step 5: Discharging & Stacking
The robot places finished pipes on the output rack, pallet or conveyor, then returns to the material area for the next cycle.
What is robot payload in a pipe bending production line ?
Robot payload refers to the maximum total weight the robot can handle, including the pipe workpiece + gripper weight.
- Light payload (3 kg – 10 kg)
For thin tubes: copper tube, aluminum tube, small stainless steel tube, furniture & fitness pipe parts.
- Medium payload (12 kg – 25 kg)
Most common standard configuration, suitable for general carbon steel and stainless steel round/square tubes for automotive and hydraulic pipelines.
- Heavy payload (30 kg – 50 kg+)
For thick-wall heavy pipes, long structural pipes, shipbuilding and mechanical frame tubes.
The payload directly decides the maximum pipe weight the bending cell can process stably in mass production.
What is robot working radius / robot reach in pipe bending production line ?
Working radius (max reach) is the maximum operating range of the robot arm, which defines the max pipe length the cell can handle.
- Short reach (1.5 m – 1.8 m)
For short pipe fittings, small bending parts, compact workshop layout.
- Standard reach (2.0 m – 2.5 m)
Universal model, covers most standard industrial pipe lengths.
- Long reach (2.8 m – 3.5 m)
Designed for long tube processing, solves long pipe drooping and positioning errors during bending.
We select robot reach according to customer’s maximum raw pipe length and workshop layout.
Why are payload and working radius critical for pipe bending automation?
Wrong payload causes unstable clamping, vibration and inconsistent bending precision.
Insufficient working radius limits pipe length and restricts production capacity.
Matching correct robot parameters guarantees zero collision, stable cycle time and uniform bending quality.
- Can you customize robot payload and working radius for different pipe sizes?
Yes.
We configure the robot model strictly based on customer’s actual production data:
- Maximum pipe length
- Maximum pipe weight
- Tube material and wall thickness
- Workshop space layout
We provide matched light/medium/heavy payload robots and standard/long-reach robots to fit small, medium and heavy pipe bending projects.
- What are the advantages of robot automatic pipe bending production line?
- Full automatic cycle: loading → bending → unloading → stacking
- Stable precision by fixed robot path
- No manual high-risk operation
- Higher output with consistent finished quality
- Customizable payload & working radius for all pipe specifications
